Variable clamp clamp

- Allows workpieces of different heights to be fastened quickly and reliably without changing the adjustment of the support screw - Continuous adjustment for a constant tensioning force - Provides stable temporary bonds without applying high force - Available in horizontal models or vertical with horizontal base as well as a push clamp.

With the norelem variable clamping clamp, the clamping of workpieces of different heights does not adjust by hand but takes place using the automatic adjustment of the clamping length range. The stepless adjustment of the clamping height for an almost constant clamping force guarantees a reliable and solid connection. The HC screw therefore does not even need to be adjusted.

Variable grasshoppers are versatile. They are suitable, for example, for clamping during drilling, bending, welding or sanding operations in the metal, wood and plastic industries. According to his requirements, the user can adjust the clamping force up to 2,500 N without tools, using a set screw located under the lever, in the joint.

The norelem product range includes toggle clamps in three different models:

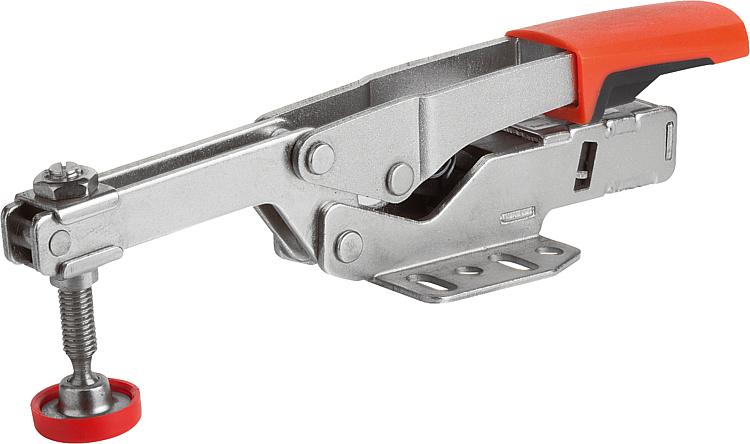

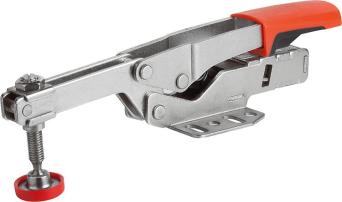

Toggle clamp with variable clamping, horizontal lever and horizontal base

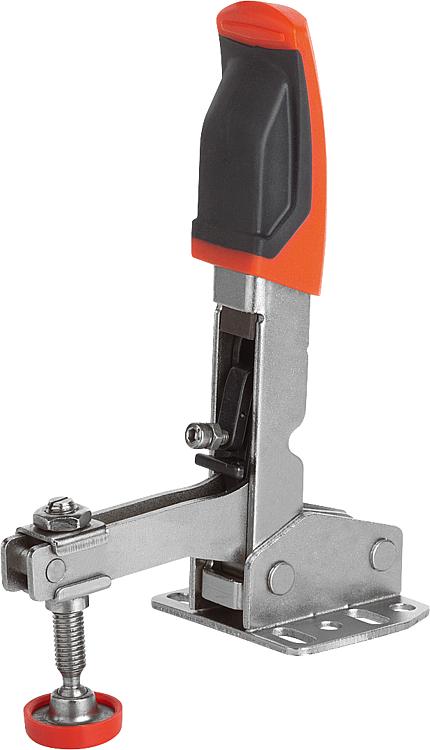

Toggle clamp with variable clamping, vertical lever and horizontal base

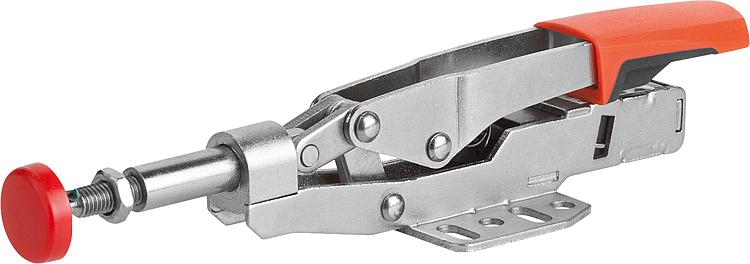

Push-on toggle clamp with variable tightening
