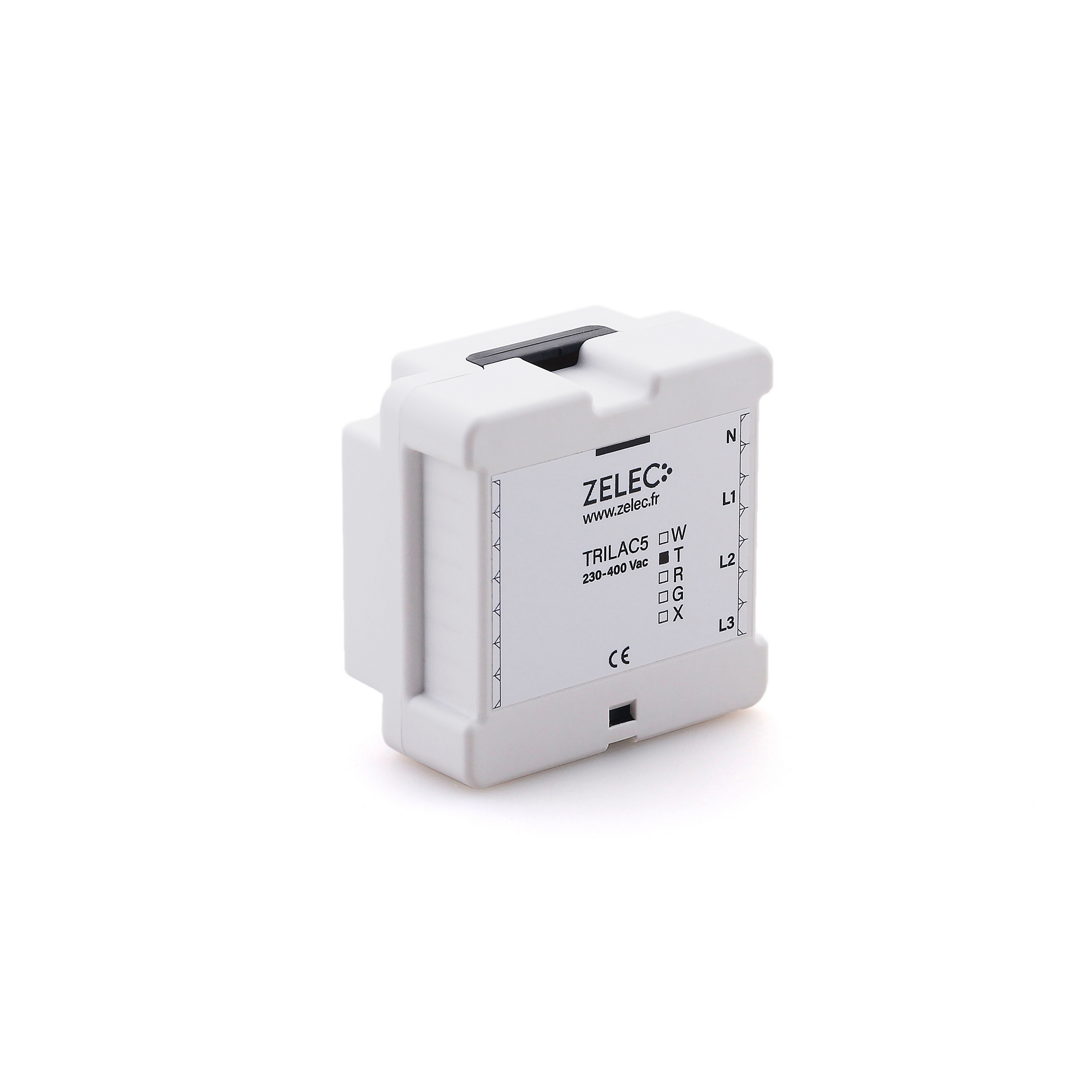

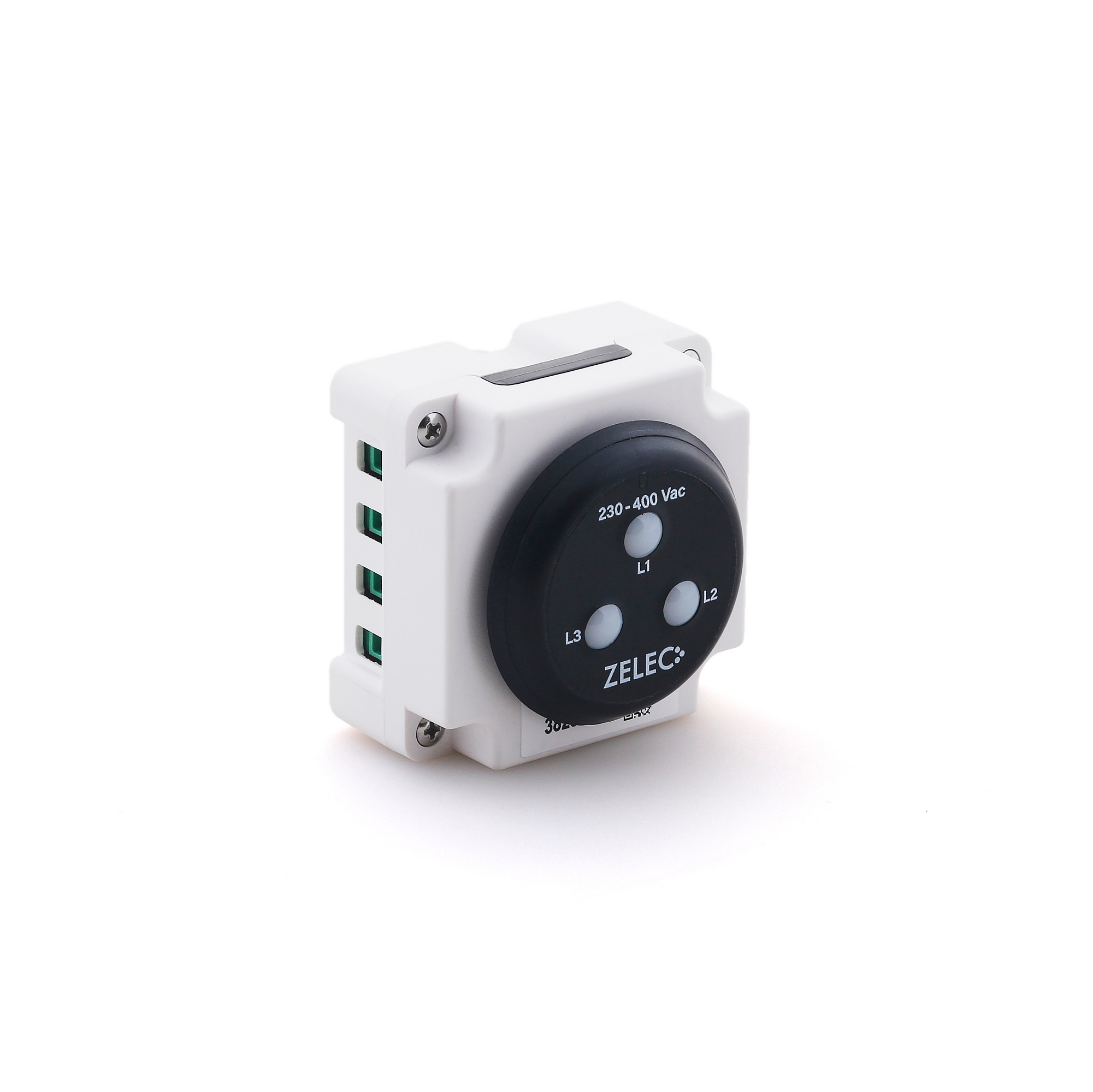

Trileds® 230-400 Vac Ø22.5 red / green / yellow indicator light - TRILAC5T
Description
The Trileds® range is the most complete solution on the market for indicating the presence of voltage on AC and DC networks.
These three-phase indicator lights, designed to be installed in electrical panels or cabinets, provide a clear indication of the voltage presence and power supply status of the 3 phases thanks to their three separate LEDs. In order to guarantee user safety, the operating voltage is specified on the front of the product.
The range is compatible with AC (three-phase or four-phase) or DC electrical networks. It is also suitable for networks with high voltages (400 Vac, 690 Vac, 1000 Vac and 400 Vdc).
Technical details
| LED color | Red, green, yellow |
| Operating voltage | 400 Vac |
| Vpk voltage | Single phase 275 Vac, three phase 475 Vac |
| Frequency of use | 50/60 Hz |
| Consumption | ≤ 1 W / 1 VA |
