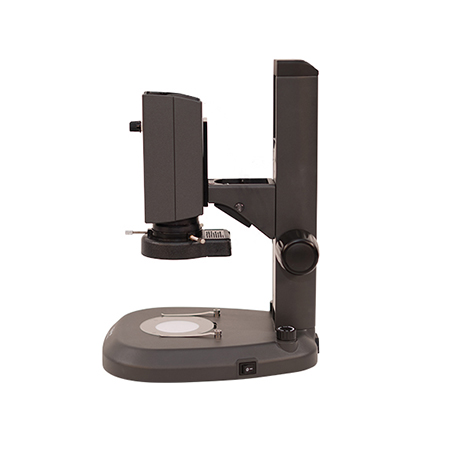

Makrolite 4K
Description
The Makrolite 4K digital microscope simplifies your optical inspection, image capture and measurement tasks thanks to exceptional Ultra High Definition image quality.

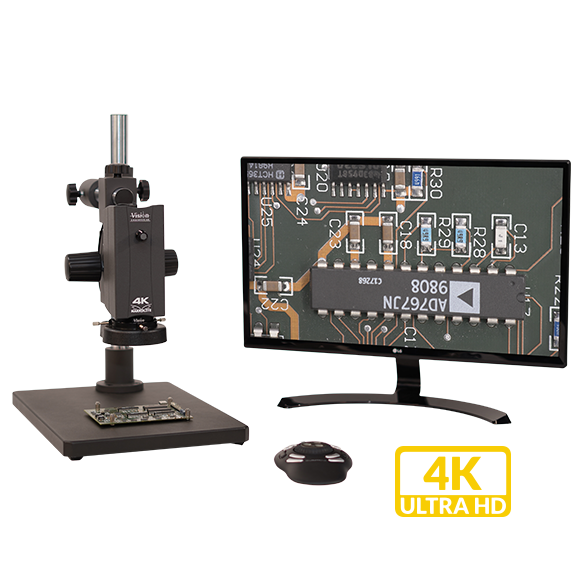

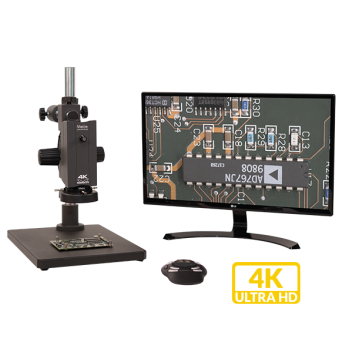

Makrolite 4K enables inspection, magnification, measurement and image capture with 4K resolution (4x higher than Full HD) and 20:1 optical zoom.
The result is exceptional image quality, showing the finest details of the subject and improving quality control productivity.
It provides live, sharp, high-definition video images in Ultra HD and up to 330x magnification for real-time viewing or data sharing.

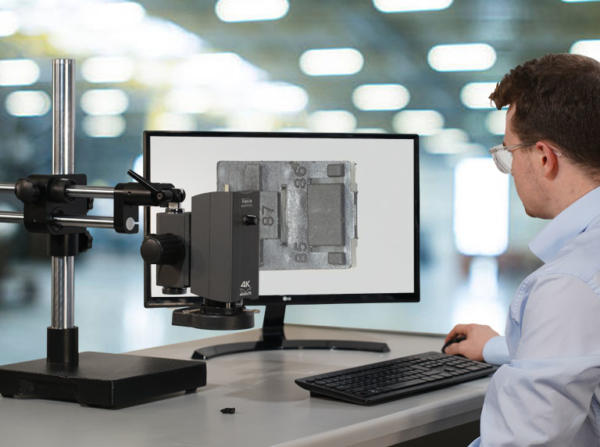

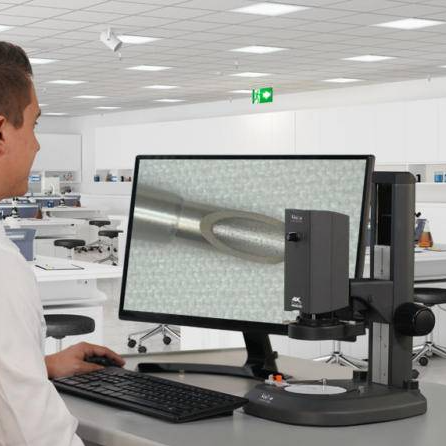

Stream or record live 4K video through your computer to share information or as a teaching/training tool.
In the PC version, comparison using live image overlays provides a reliable and efficient way to save time in performing routine or recurring inspection tasks to defined standards. Importing CAD files acts as a simple image comparator, making defect detection and GO/NO GO inspection easier.

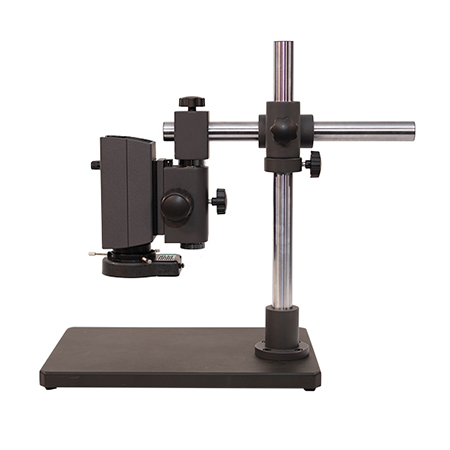

Makrolite 4K's ultra-wide field of view is ideal for inspecting highly reflective subjects such as polished surfaces and welds, and low-contrast subjects like black plastics and ceramics, thanks to exceptional dynamic control . Makrolite 4K offers both high performance and great versatility: the system is ideal for a wide range of applications, and benefits from a wide range of options, lenses and mounts.
Technical details
Optical Data
| Goals | 0.45x | 0.62x | 1.0x | 1.5x | 2.0x |
| Working distance | 170mm | 112mm | 84mm | 43mm | 29mm |
| Field of view (minimum magnification) | 212mm (3x) | 201mm (3x) | 61mm (10x) | 28mm (20x) | 24mm (20x) |
| Field of view (maximum magnification) (Optical Zoom) | 8.8mm (45x) | 10.2mm (57x) | 6.2mm (100x) | 4.2mm (150x) | 3.2mm (165x) |
| Field of view (maximum magnification) (Digital Zoom) | 4.4mm (90x) | 5.1mm (114x) | 3.1mm (200x) | 2.1mm (300x) | 1.6mm (330x) |
* Magnifications are for a 27″ screen
| Camera | |
| Type of sensors | CMOS 1/2.5″ 8.51 mega pixels |
| Picture | Ultra HD 2160p (3840 x 2160) |
| Focus | Autofocus or manual |
| Camera Output | 4K 2160p/30fps |
| Camera output on computer | 4K 2160p/30 fps on PCI Express card |
