Mounting brackets


Description

The brackets are suitable for vertical positioning and fixing of parts and devices. They offer you a quick and economical way to build workpiece clamping systems with standardized clamping elements.

At norelem, you will find a wide range of brackets depending on the use you wish.

Types of brackets

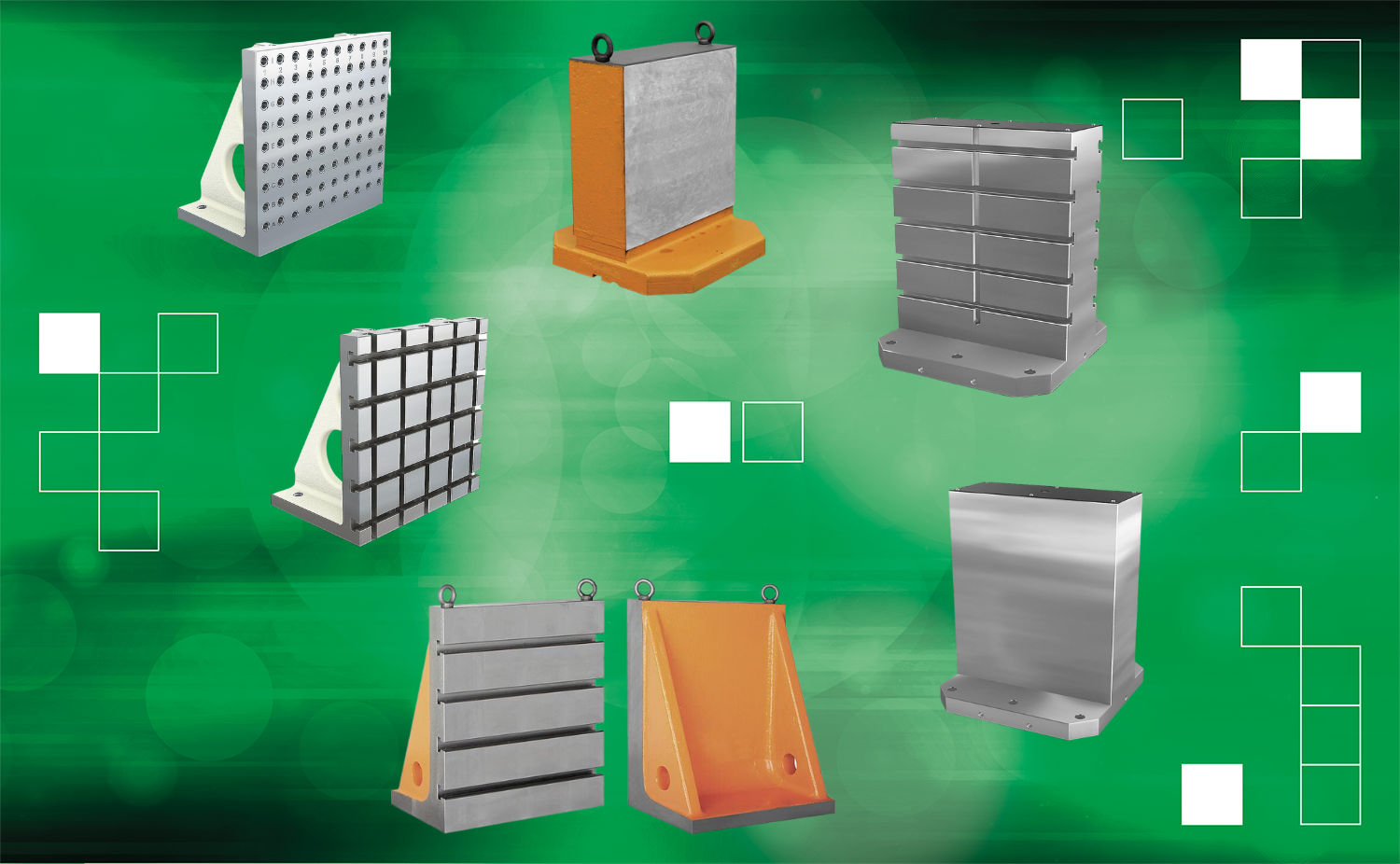

Choose the right bracket for your needs! Shape, material, discover the norelem squares.

Choose the square you need:

Kind

Function

Benefits



Square with grooves

Norelem T-shaped grooved brackets enable the construction of workpiece clamping systems with standardized clamping elements.

  • No precise grooves
  • Longitudinal and transverse direction
  • Repeatability of tightening operations



     Pre-machined square

Brackets with pre-machined support faces enable the production of base bodies with specific modular frames or individual holes.

  • Face machining by the customer
  • Machined foot on machine tool table
  • Complies with DIN 55201 and JIS 6337-1980 standards



      Simple square

Simple brackets offer a single support phase

  • Machined reference surfaces
  • Compatible with DIN 55201 and JIS 6337-1980 machine tool pallets



     Double square

Double brackets offer two available support surfaces

  • Machined reference surfaces
  • Compatible with DIN 55201 and JIS 6337-1980 machine tool pallets
  • Anti-chip protection sheets

Squares for industry



Clamping brackets represent essential parts in the industry, particularly for those who work in machine construction and the installation and manufacture of various tools . These brackets are perfect for fixing parts on trays or tool tables.



Brackets for other assembly work

Due to its high resistance to corrosion, aluminum is one of the most popular materials in the building sector. Cast iron is very good in compression. These two materials used in norelem clamping brackets are of high quality and reliable for assembly work . Many diverse uses of these products can therefore be made.

The cast iron and aluminum mounting brackets support heavy loads and are robust, allowing secure fixing . The brackets are also used for configuring modular devices on horizontal machines.


Technical details

Material of brackets



Both resistant and modular , each square model is precisely adapted to your needs.

The fixing of the brackets is made up of a large group of elements used to hold objects. They can no longer move, fall or even separate thanks to the different materials. Different materials are used depending on the model:

  • Lamellar graphite cast iron
  • GJL 250, GJL 300
  • Aluminum
  • Grey font
  • Etc.

Bracket colors



At norelem, we offer angle brackets in gray cast iron, angle brackets in aluminum and GJL in gray and steel with orange-coloured protective plates.

Slotted squares



Grooved brackets are highly popular for their versatility. The precise groove pitches, both in the longitudinal and transverse direction, guarantee a very high repeatability of the tightening operations. These T-slot brackets offer a quick and economical way to build workpiece clamping systems with standardized clamping elements.

Sketch of a simple wide gray cast iron square with T-slots

Smooth clamping brackets



The smooth clamping brackets offer you a personalized maneuvering step. Pre-Machined Faces are a fast and economical way to manufacture base bodies with specific modular grids or individual holes. This allows you to adapt the support surfaces to your own machine tools.

Sketch of a double square in gray cast iron with pre-machined bearing faces
