CABLE EQUIPEMENTS

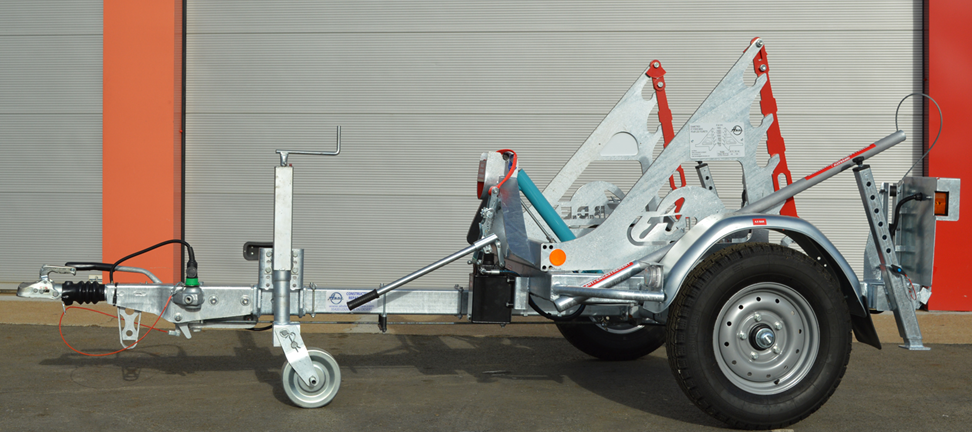

Reel trailer - RD 150 range
Unwinding trailer - payload 1120 kg
| For drum | |
| max weight | 1120kg |
| Max diameter | 1650mm |
| Max width | 1250mm |
| Features | |
| GVWR (total authorized weight) | 1500kg |
| PV (curb weight without options) | 380 kg |
| Useful width | 940mm |
| Overall width | 1950mm |
| Length overall | 3500mm |
Options
- Reel brake allows you to manage unwinding without running away
- Connecting the balancer to the central unit saves time and increases efficiency
- Spare wheel support or warning sign (not compatible with motorized axle)
- Thermal hydraulic power plant
- Aluminum skid for installation and removal of the mobile thermal power plant in a few minutes
- 3-phase aluminum cage for rewinding the cables
- Unwinding axis support allows the axis to be stored on a support
Standard equipment
- Thru axle 1500 kg (rigidity without comparison) with brake 230x40 (for GVW 1500kg).
- KNOTT drawbar adjustable by CRANK from 30 to 95 cm with DIN 42x68 ring
- Aluminum unwinding axis with automatic reel wedging rings without pin
- 70mm square jockey wheel, static load of 1100kg
- 2 stabilizing stands at the rear
- AL-KO metal wings and mud flaps (wing longevity and cost reduction)
- Lighting on silent blocks and cable protection (safety and maintenance)
- 185R14C wheels (900 kg per wheel, safety and longevity)
- Trailer made in France. CE certified.
- Retractable anti-underrun bar, no hindrance on site
- Hydraulic balancer for loading the reel and transport strap
- 7 lubrication points
- Establishment of the registration document with the competent authorities and registration ( SCG code )
Code RD150
