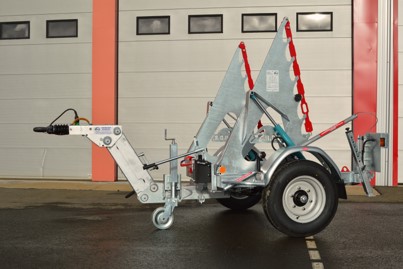

Reel trailer - RD 250 range
Unwinding trailer - payload 1820 kg
| For drum | |
| Max weight | 1820 kg |
| Max diameter | 2600mm |
| Max width | 1360mm |
| Features | |
| GVWR (total authorized weight) | 2500kg |
| PV (curb weight without options) | 680 kg |
| Useful width | 1400mm |
| Overall width | 2090mm |
| Overall length | 3500mm |
Options
- Reel brake allows you to manage unwinding without running away
- Connecting the balancer to the central unit saves time and increases efficiency
- Spare wheel support or warning sign (not compatible with the motorized axle)
- Thermal hydraulic power plant
- Aluminum skid for installation and removal of the mobile thermal power plant in a few minutes
- 3-phase aluminum cage for rewinding the cables
- Unwinding axis support allows the axis to be stored on a support
Standard equipment
‐ Round through axle Ø 103 mm PAILLARD TP range with incorporated suspension with brake 300 x 60
- Height adjustment of the hitch by crank drawbar KNOTT ring 42 x 68
- Aluminum unwinding axis with rotating ring and automatic reel setting rings without pin
- Front jockey wheel static load 1100 kg
- 2 stabilizing stands at the rear
- Lighting on silent blocks and cable protection (safety and maintenance)
- 225/75/R 16 C wheels (1450 kg per wheel, safety and longevity)
- Trailer made in France. CE certified.
- AL-KO metal wings and mud flaps (wing longevity and cost reduction)
Code RD250
