Single 40/40 Adjustable Friction Joints Type B
Description
Friction joints for the construction of individual swivel arms using aluminium profiles. These friction joints are characterised by an adjustable friction torque. Their friction resistance can be continuously adjusted using a set screw. Can be rotated 360°. Modular dimension 40 mm.

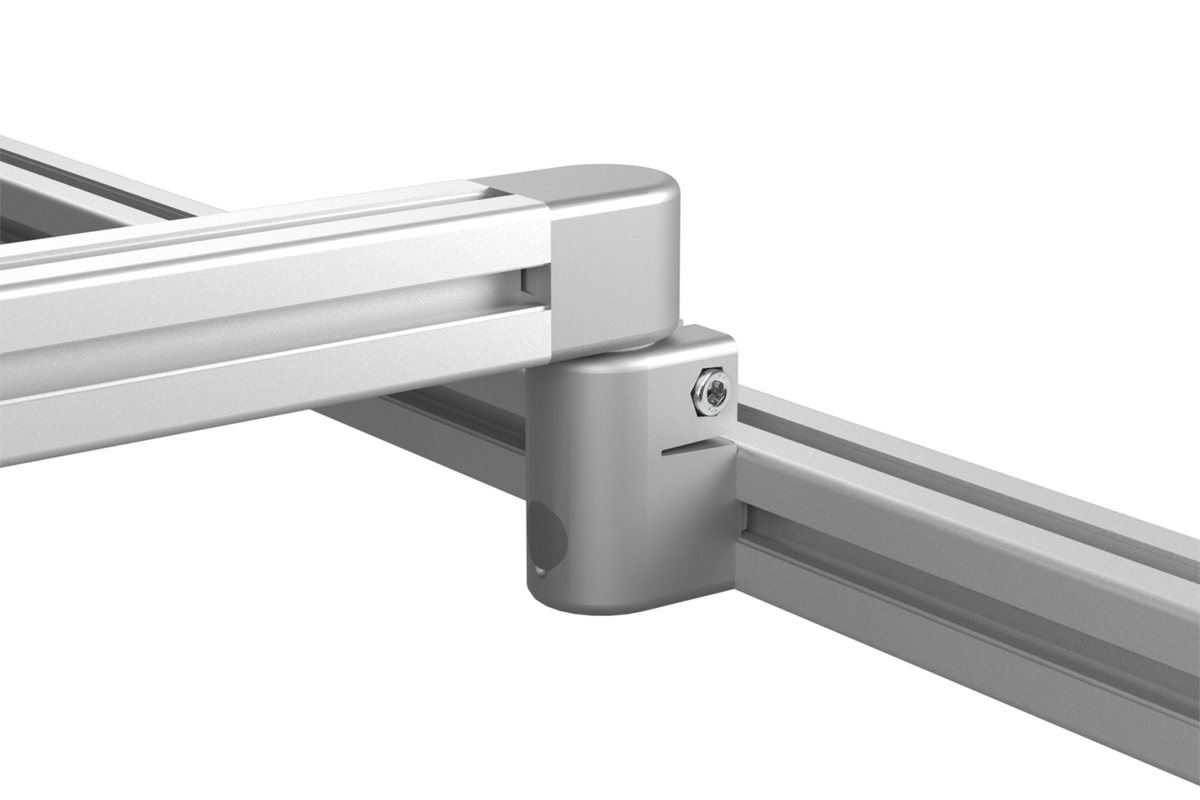

The connection side can be screwed longitudinally or transversely to the profile groove, the friction axis is thus positioned perpendicular to the profile.
The friction joint side can be fixed to the profile in the longitudinal, transverse or frontal direction. For frontal mounting, the core hole must have an M8 thread (min. depth 15 mm). For mounting on flat surfaces, simply do not use the supplied mounting plates.

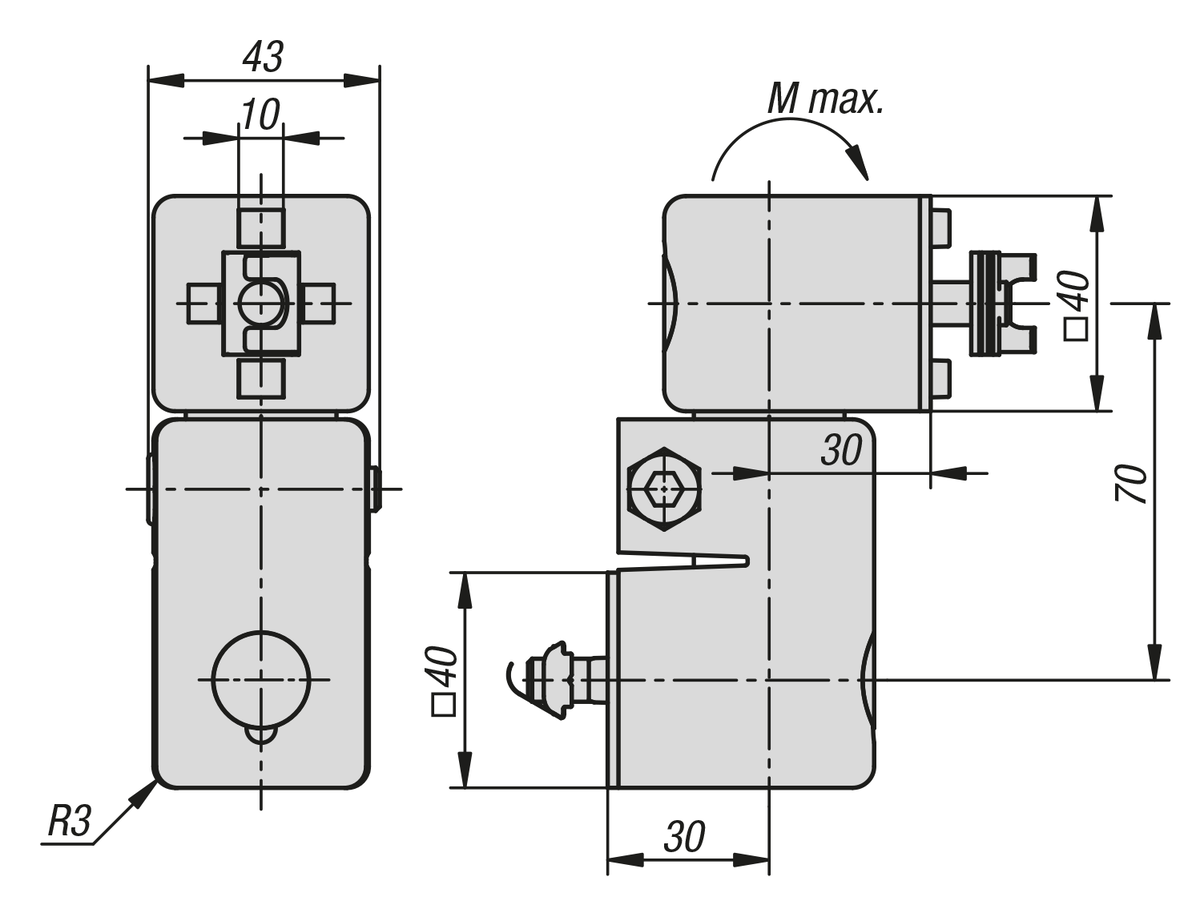

The maximum torque load M is 45 Nm.
Technical details
Matter
Housing: cast aluminum.
Inserts and friction shaft: steel.
Sealing ring and cover caps: plastic.

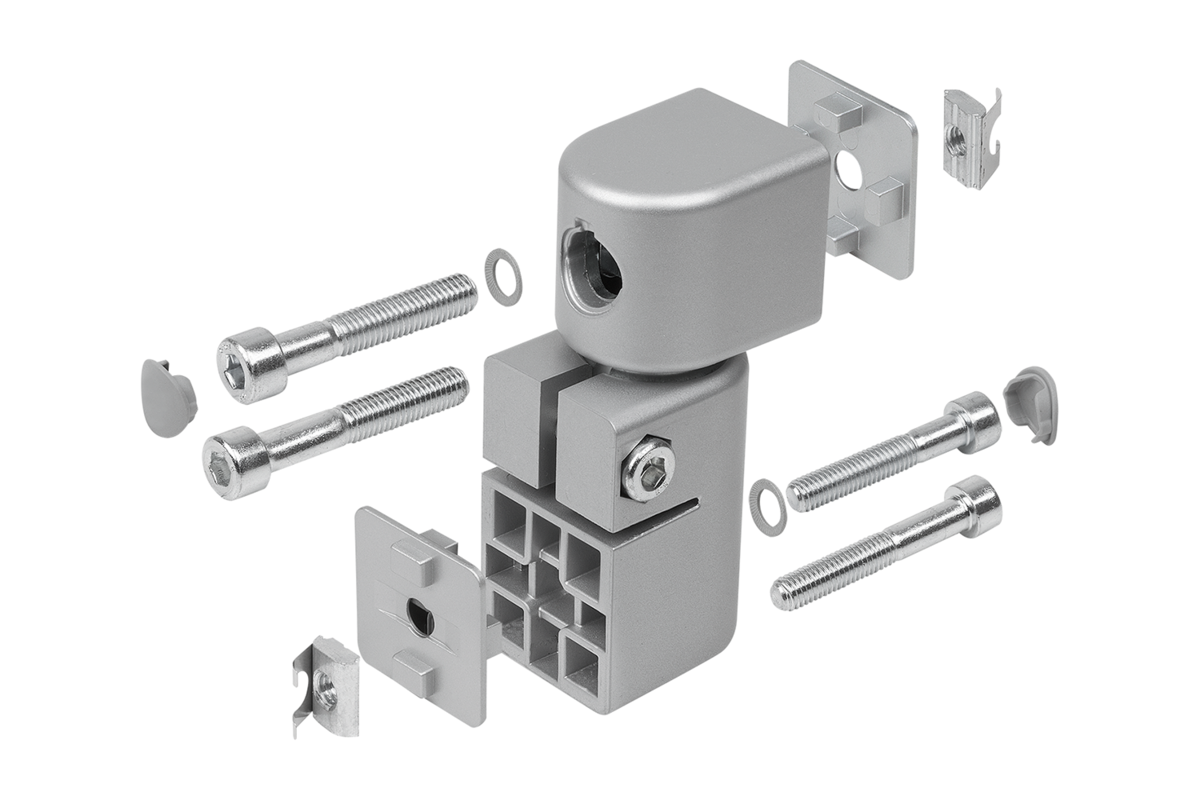

Fixing plates: cast aluminum.
Screws, washers and cleats: steel.
Inserts and friction shaft: steel.
Sealing ring and cover caps: plastic.
Fixing plates: cast aluminum.
Screws, washers and cleats: steel.
Finishing
Case: epoxy lacquered in aluminum color.
Inserts and friction shaft: raw.
Sealing ring and cover caps: similar to RAL 7042.
Fixing plates: epoxy lacquered in aluminum color.
Screws, washers and cleats: zinc plated.
Inserts and friction shaft: raw.
Sealing ring and cover caps: similar to RAL 7042.
Fixing plates: epoxy lacquered in aluminum color.
Screws, washers and cleats: zinc plated.
