Side channel turbines
Side channel blowers are used to generate suction or blow air in heavy industrial applications. These dynamic turbo fans are wear-free and maintenance-free.
Side channel blowers contain a non-contact, fast rotating impeller inside a blower housing. On both sides of the impeller, there are two separate ring-shaped side channels with the housing. The rotating impeller draws air in from the inlet side, accelerates the air or gas inside the housing, and then discharges it from the outlet side once it is fully pressurized.
With single-stage fans, air rotates once inside the housing through both sides of the impeller before being drawn in. This two-stage operation results in a higher volume flow rate.
By means of an internal air diversion from the first to the second side of the impeller, in the case of two-stage fans, the air rotates twice inside the housing before being sucked in. This single-flow operation results in a higher vacuum or pressure.

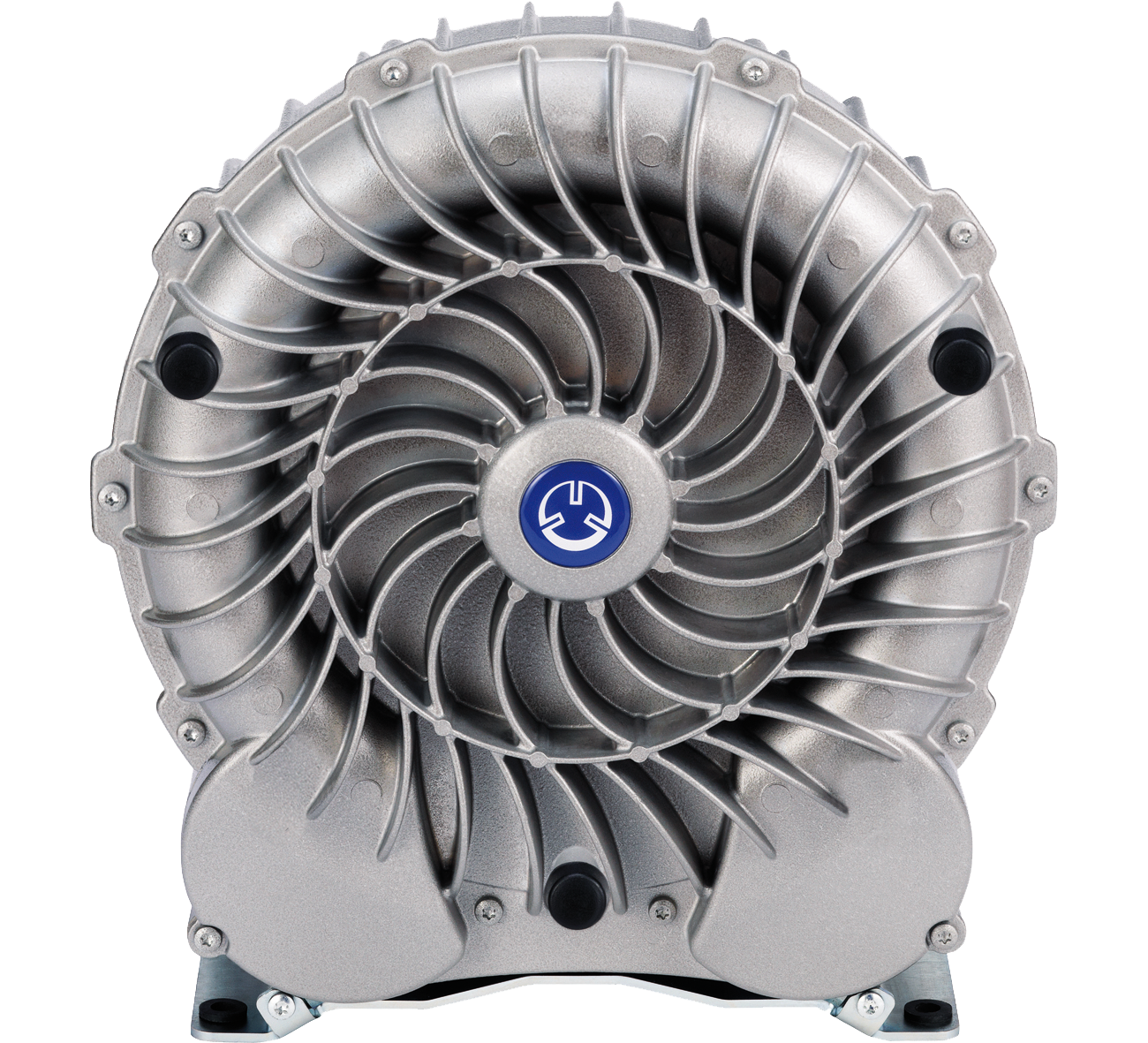

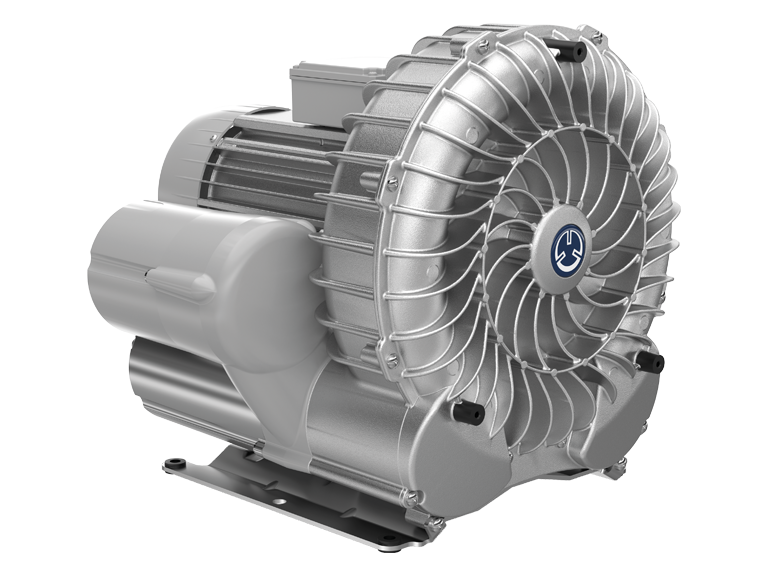

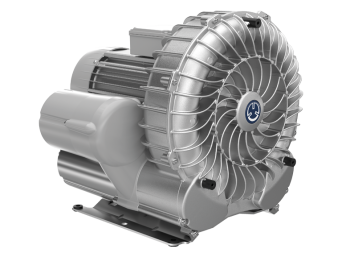

SV Series Single Stage Product Information/Specifications
| Volume flow 50Hz | Absolute vacuum 50Hz | Power 50Hz | |
|---|---|---|---|
| SV 5.90/1 | 75 m³/h | -105 mbar | 0.37 kW |
| SV 130/1 | 130 m³/h | -75 / -125 / -210 / -240 mbar | 0.55 / 0.75 / 1.1 / 1.25 / 1.5 kW |
| SV 200/1 | 180 m³/h | -150 / -215 mbar | 1.1 / 1.5 kW |
| SV 201/1 | 190 m³/h | -140 / -220 / -275 mbar | 1.1 / 1.5 / 2.2 kW |
| SV 300/1 | 325 m³/h | -170 / -265 / -290 mbar | 2.2 / 3 / 4 kW |
| SV 400/1 | 390 m³/h | -210 / -315 mbar | 3 / 4 / 5.5 kW |
| SV 500/1 | 510 m³/h | -200 / -315 / -355 mbar | 4 / 5.5 / 7.5 kW |
| SV 700/1 | 750 m³/h | -200 / -300 / -360 mbar | 5.5 / 7.5 / 11 kW |
| SV 1100/1 | 1050 m³/h | -160 / 290 / 320 mbar | 7.5 / 11 / 15 kW |
