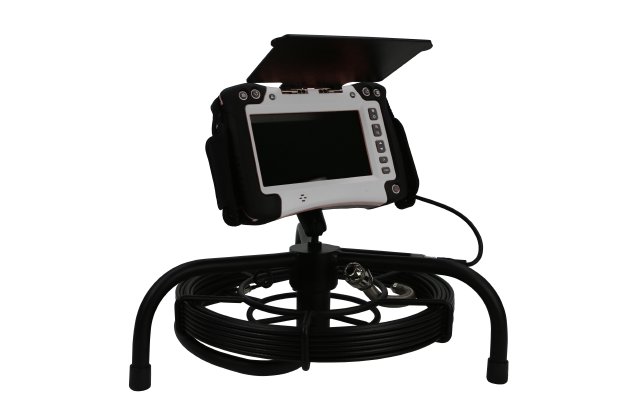

TITAN Pipe Endoscope (TTS-S11 28.0 30M)
Description
The TITAN TTS-S11 28.0 30M endoscope is specifically designed to give you access to pipes and conduits. Its 30m hose and IP67-certified waterproofing allow you to have visibility wherever you are. Inspect welds, pipes, or look for blockages with ease.
- Long hose length: 30m
- Zoom x4
- 12 LED lamps
- IP67 certified: high waterproofness
Find our complete catalog here and visit our website for more information.
Technical details
Camera:
- Camera head: Ø 28mm
- Image sensor: 1/8" CMOS
- Resolution: 640 x 480 px
- Focus: 60~600mm
- Field of vision: 140°
- Lighting: 12 LEDs with adjustable intensity
- Waterproof: IP67
- Location system: optional (ref FPT 200)

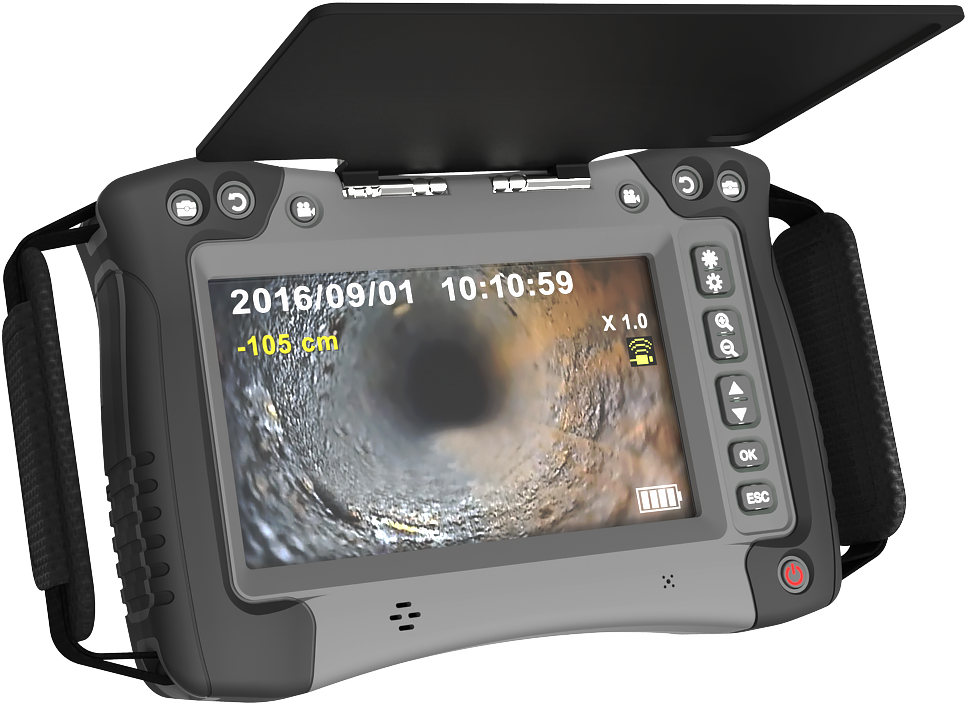

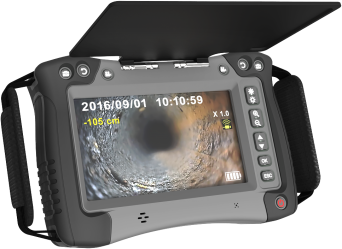

Control box:
- Dimensions: 24 x 16 x 7 cm
- Display: 7" color TFT LCD monitor
- Resolution: 720 x 480px
- Battery: Rechargeable Li-polymer 7.6 Ah / 3.7 V
- Memory: 32Gb max.
- Material: Durable ABS
- Brightness: 6500 lux
- Interfaces: Mini USB 1.1 / AV output
- Photo resolution: 640 x 480 px (.jpg)
- Video resolution: 640 x 480 px (.mov)
- AC adapter: 100~240V AC input, 5V DC output
- Languages: 26 languages
- Net weight: 1.3kg
Camera hose:
- Removable hose: no
- Camera head orientation: non-articulated
- Hose length: 30m (40m max.)
Usage environment:
- Operating temperature:
- of the main unit: -20°C ~ 60°C
- camera temperature: -10°C ~ 60°C
- Storage temperature: 15°C ~ 25°C
