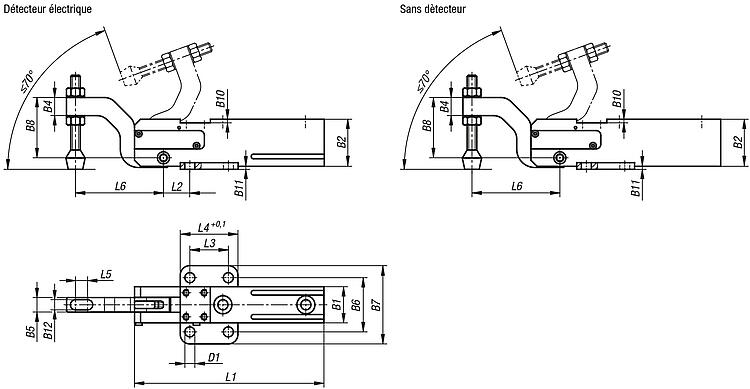

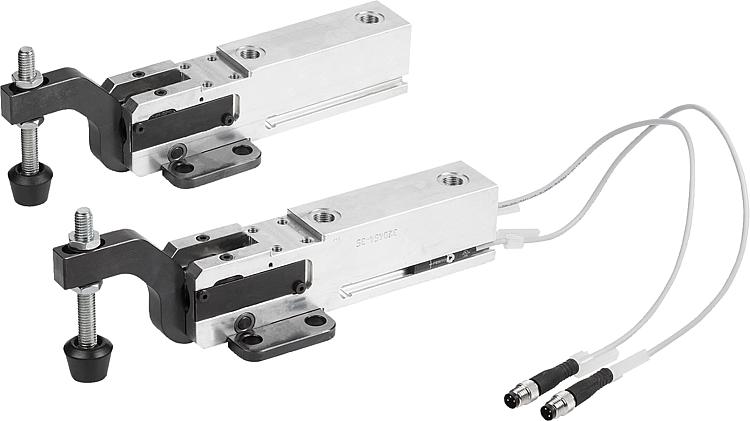

Mini toggle clamp for horizontal mounting
Description
It is self-locking, in the event of loss of pressure because the clamping force is ensured by exceeding the alignment point of the axes. It requires no maintenance thanks to permanent lubrication and can operate with dry, non-oiled air.
Technical details
Material: Body: high strength aluminum. Clamping arm: steel. Version: Clamp arm: burnished. ROHS Connection type: PIC0 Operating voltage: 10...30 VDC Residual ripple (%): <10 Power consumption (mA): <2.0 Continuous current (mA): <120 Positioning accuracy (mm): <1 Display switching status indicator: LED Permissible ambient temperature (°C): -25...+70 Protection class (DIN 40 050): IP67
