PIZZATO ELETTRICA SRL

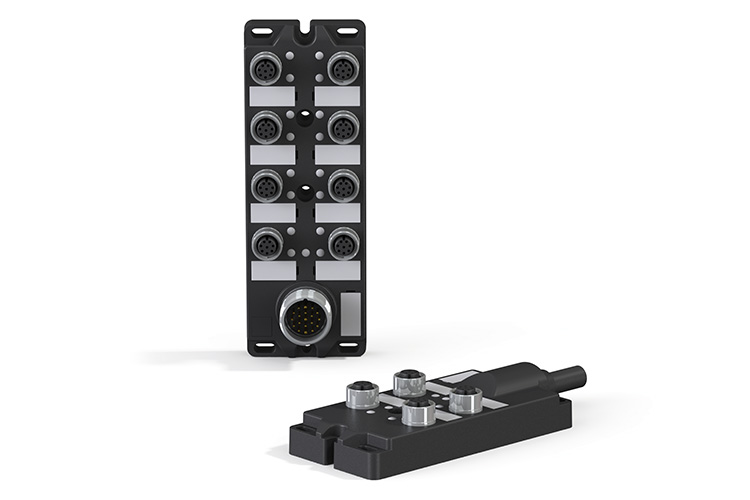

The BC series passive distribution box
In the world of industrial automation, wiring safety devices can be a real challenge. Pizzato's new passive BC series distribution box has been designed to simplify this procedure. In fact, this device makes it possible to connect in series several safety devices fitted with an 8-pin male M12 connector, thus obtaining more efficient and orderly wiring.
Fast and efficient wiring:
One of the main features of the BC series passive distribution box is to group the various input and output signals on a single 19 or 12 pole connection with cable or M23 connector. This simplifies wiring and helps make it tidier. In addition, the BC series distribution box facilitates device replacement if necessary, for quick and easy maintenance.
Improved power distribution:
The distribution box not only simplifies wiring, it also improves power distribution. Compared to typical series connections, this device allows a greater number of NG/NS series switches to be connected, without voltage drop. This means that it is possible to ensure a reliable distribution of power to the connected devices and therefore guarantees proper operation of the system.
Technical features and benefits:
The BC series passive distribution box has a whole series of technical characteristics which make it the right choice for applications in the field of industrial automation. Among these features:
1. Status indication: Integrated LEDs give a quick indication of the status of each of the connected devices, which facilitates supervision and monitoring.
2. The degree of protection IP67: the compact and totally hermetic enclosure of the distribution box guarantees complete protection against the ingress of dust and liquids, which allows it to be used in any working environment.
3. Various I/O variants available: The BC series includes various I/O variants for great flexibility in connection with a wide range of safety devices.
In summary, Pizzato's BC series passive distribution box simplifies wiring, improves power distribution and offers a host of technical advantages that make it the ideal choice for industrial automation.
Available end of 2023
Download Brochure → BC Series Brochure
