Connection gateway for P-Connect security devices
Description

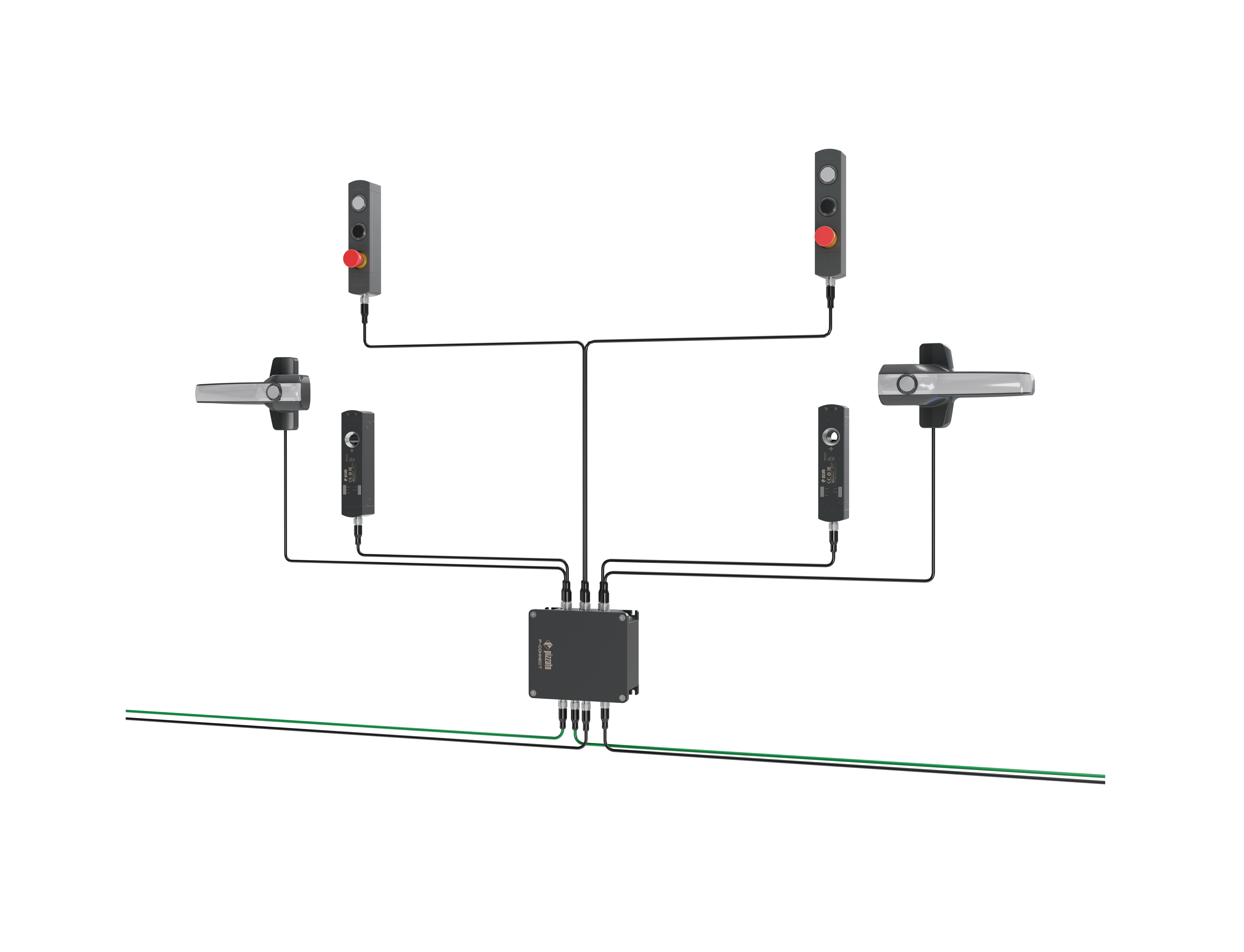

The P-Connect connection gateway is a system for connecting up to 6 devices to a data network. Safety information is exchanged via PROFIsafe extensions.
Depending on the configuration, the Gateway is capable of transmitting signals from two NG or NS series RFID interlocking safety switches; the connection is made securely in accordance with PROFIsafe standards.
The P-Connect gateway can be connected to different devices in the Pizzato Elettrica range, for example to the modular control boxes of the BN series or to the handles with integrated signaling LEDs of the AN series.
Technical details
Features :
- Aluminum housing with IP65 degree of protection;
- Working temperature -15°C … +50°C;
- Connection of safety devices to PROFINET and PROFIsafe networks;
- Quick access to diagnostic data such as, in particular, the internal temperature and the gateway's supply voltage or the current absorbed by the connected devices;
- Plug and play device for reduced wiring time compared to wiring in the panel;
- Possibility of serial connection of several P-Connect connection gateways;
- 3 integrated indicator LEDs for better visualization of on-site diagnostics;
- Many configurations available;
- Possibility of positioning the P-Connect in a place separate from the connected devices so as to limit the risk of damage.
For more information about our products, please contact us at info@pizzato.com .
Availability 1st quarter 2023.
