NORELEM

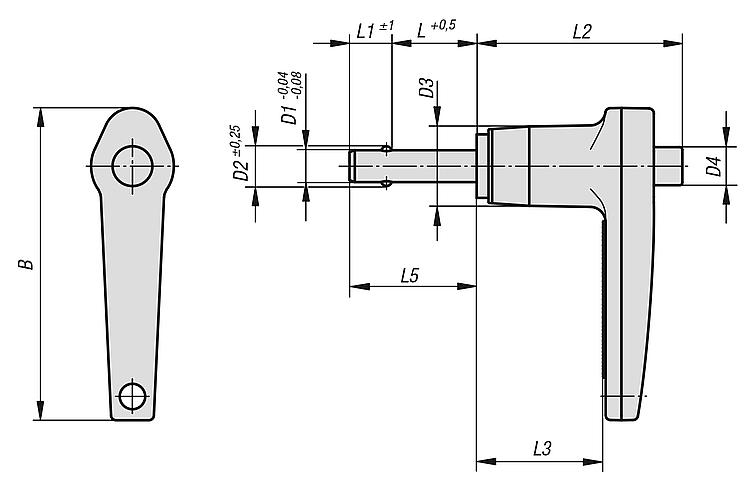

Stop pin with L-handle
The self-locking stop pins make it possible to assemble or fasten parts or elements quickly and simply. Pressing the snap button unlocks the two balls and therefore separates the parts. By releasing the press stud, the balls lock and provide a secure and unremovable assembly. The locking pins can, if necessary, be equipped with a retaining rope.
The hardened high-strength stainless steel bolt withstands extreme stresses with very high wear resistance.
Double section shear force (F) = S τ aB max.
The shear force data corresponds to the theoretical breaking load.
These are non-binding indicative values, which do not take into account safety factors and exclude any liability. The values indicated are for informational purposes only and do not constitute a legal guarantee of the properties.
The load values have been calculated in accordance with DIN 50141. Each user must determine for himself whether the self-locking locking pin is suitable for the intended application.
The different materials with which the self-locking locking pins are used, the climatic conditions as well as the wear and tear can influence the set values.
Material: Pin in 1.4542 stainless steel.
EN-AC 46000 die-cast aluminum handle.
EN-AW 2024 T4 aluminum snap button.
1.4125 stainless steel balls.
Stainless steel pressure spring. Finish: Hardened stainless steel pin, hardness min. 40 HRC and passivated.
Black anodized handle.
Blue anodized snap button.
Hardened steel balls, hardness 58 +4 HRC and passivated.
Passivated pressure spring.
