M12x1 socket connector with screw lock
Description
NOTE
Connector with screw lock.
Connector molded onto the cable.

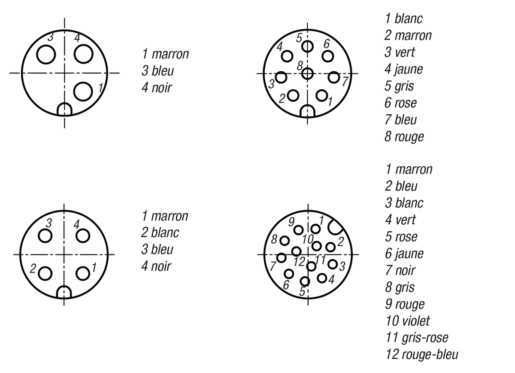

Wire identification according to DIN 47100 color code.
Coding A. Recommended tightening torque for locking 0.6 Nm.
The connectors are designed for use in the construction of electrical installations, controls and devices.
Connector molded onto the cable.
Wire identification according to DIN 47100 color code.
Coding A. Recommended tightening torque for locking 0.6 Nm.
The connectors are designed for use in the construction of electrical installations, controls and devices.
Technical details
MATTER
Housing: plastic.
Cable: PUR
(4 poles length 3 or 5 meters PVC.
8 poles length 10 meters PVC.
12 poles length 10 meters PVC).
Cord insulation: PP
(4 poles length 3 or 5 meters PVC.
8 poles length 10 meters PVC.
12 poles length 10 meters PVC).
Contact: copper alloy.
Contact surface: Au (gold).
Locking: nickel-plated high-pressure injected zinc.
Cable: PUR
(4 poles length 3 or 5 meters PVC.
8 poles length 10 meters PVC.
12 poles length 10 meters PVC).
Cord insulation: PP
(4 poles length 3 or 5 meters PVC.
8 poles length 10 meters PVC.
12 poles length 10 meters PVC).
Contact: copper alloy.
Contact surface: Au (gold).
Locking: nickel-plated high-pressure injected zinc.
FINISHING
Socket (female).
Case color: black.
Cable color: black.
Case color: black.
Cable color: black.
