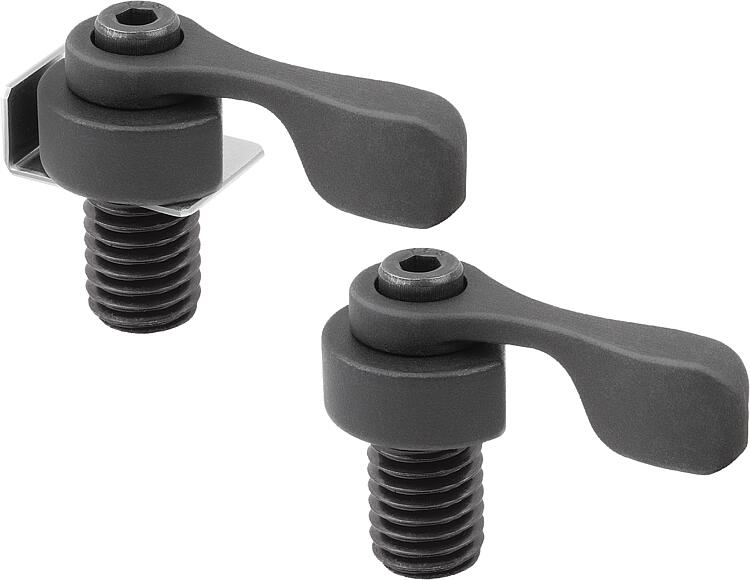

Steel clamping eccentric with indexable handle
Description

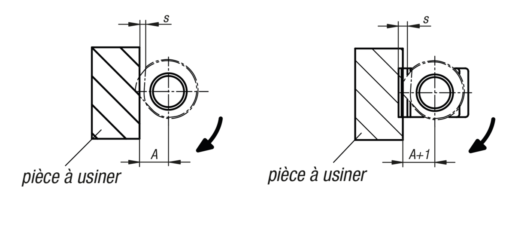

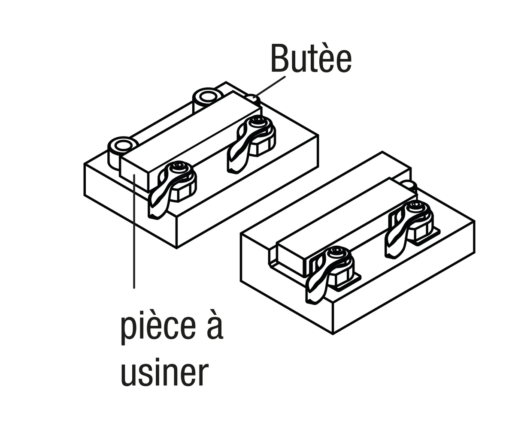

Dimension A refers to the distance between the workpiece and the center of the thread (clamping screw).
To minimize scratches on the workpiece, it is recommended to use form B with clamping plate.
Thanks to its hexagonal shape, the indexable handle can be mounted in steps of 60° and therefore oriented according to the user.
Advantages: - Compact design
- Quick and easy tightening of components
- Tool-free tightening thanks to the indexable handle
Technical details
Material: Processed steel. Finish: Burnished. Accessories: Clamping plate 04431-15. Drawing indication:

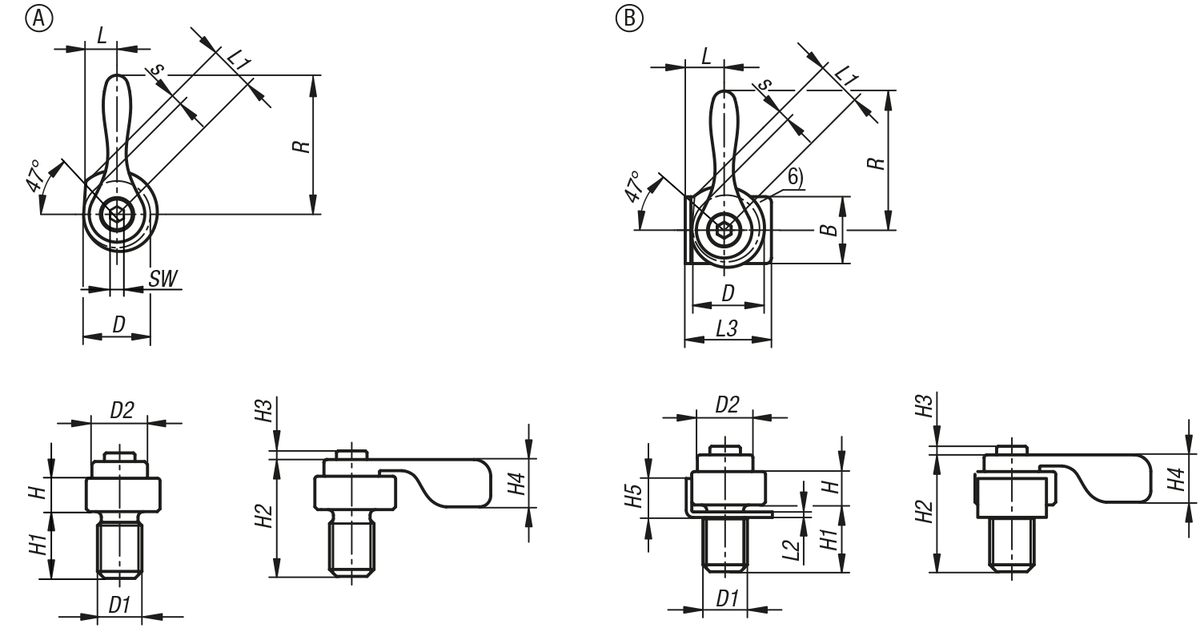

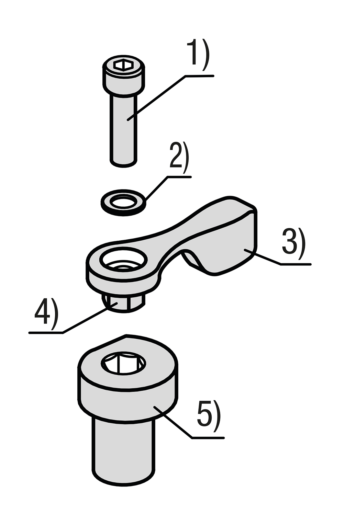

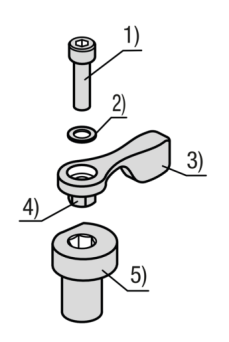

(1) Tightening screw
(2) Spring washer
(3) Indexable handle
(4) Hex key
(5) Clamping eccentric
(6) Clamping plate
(2) Spring washer
(3) Indexable handle
(4) Hex key
(5) Clamping eccentric
(6) Clamping plate
