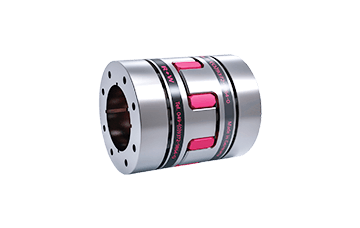

R+W - SP6 ELASTOMER INSERT COUPLING
For over 30 years, R+W Antriebselemente GmbH has been manufacturing couplings, torque limiters and shaft lines for the whole world from 0.05 Nm to 2000 kNm that could meet your needs. In addition to a wide range of products, we can also offer you special couplings totally adapted to your applications.
FOR MAXIMUM PRECISION AND DYNAMICS: ELASTOMER COUPLINGS FROM R+W
The main advantages of elastomeric couplings are: vibration absorption, pluggable, zero backlash and electrical insulation. They are used in the following areas: Control technology, machine tools, packaging machines, automation systems, printers, control and positioning equipment, general mechanical engineering, pumps and mixers or roller door motors: depending on their function, the areas of use of the elastomer coupling are as varied as your requirements.
very high precision
very high concentricity
symmetrically machined hubs
MATERIAL
Hubs: high strength aluminum; steel optional
Clamping ring: high strength aluminum; steel optional
Elastomer: wear-resistant and thermally stable TPU
DESIGN
Two precision machined hubs, with curved jaws and tapered clamping rings.
FIT SPACING
Overall shaft/hub tolerance 0.01 - 0.025 mm
