Laser Geometry
Description

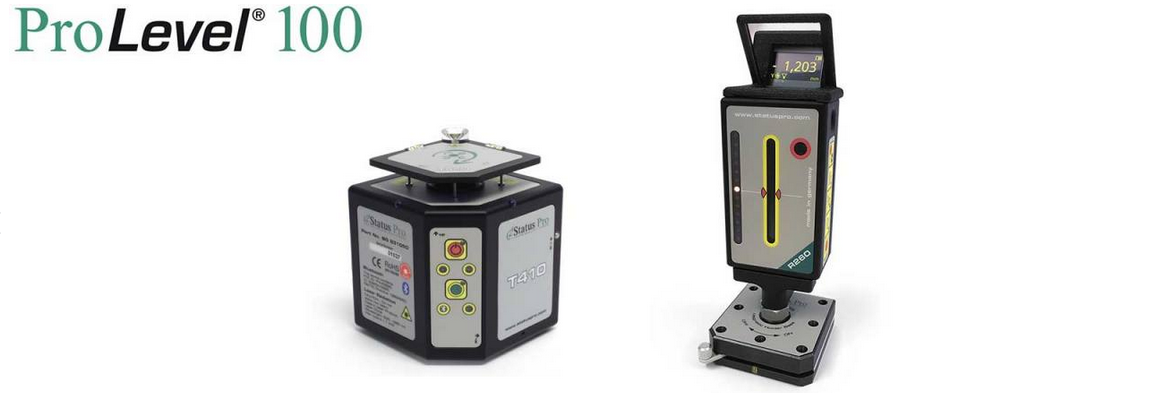

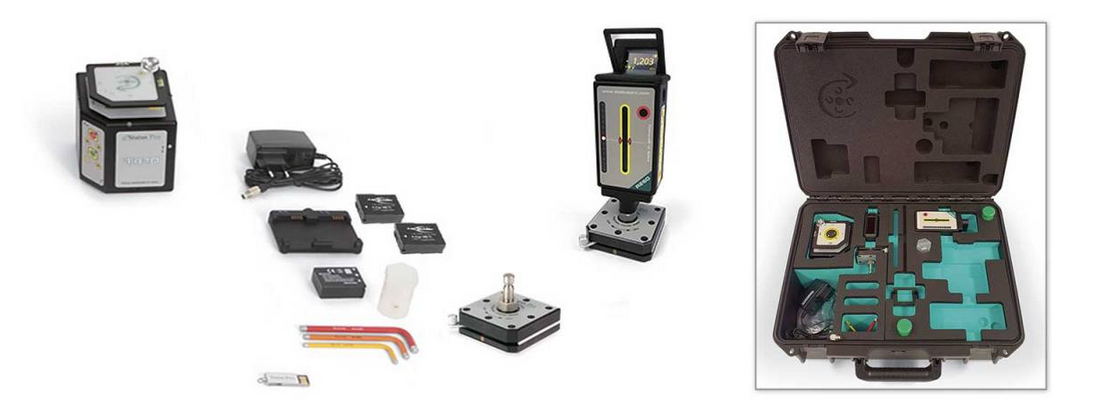

SP PROLEVEL 100 PLANÉITÉ
- Flatness measurement and precision level with PROLEVEL software
- Professional precision laser, for rapid measurements within everyone's reach!
- Flatness and level measurement over long distances (50m).
- Self-leveling precision laser source (0.02 mm/m).
- Detector measurement resolution (60mm detection) for flatness 0.01mm with PROLEVEL software.
- Great ease of use.
- CCD wireless Bluetooth detector with rechargeable battery, mains charger included.
- PROLEVEL PC software (works via Bluetooth for PC).
- ProLevel® 100 is a very practical and inexpensive measuring/level set for machine tools or special machines

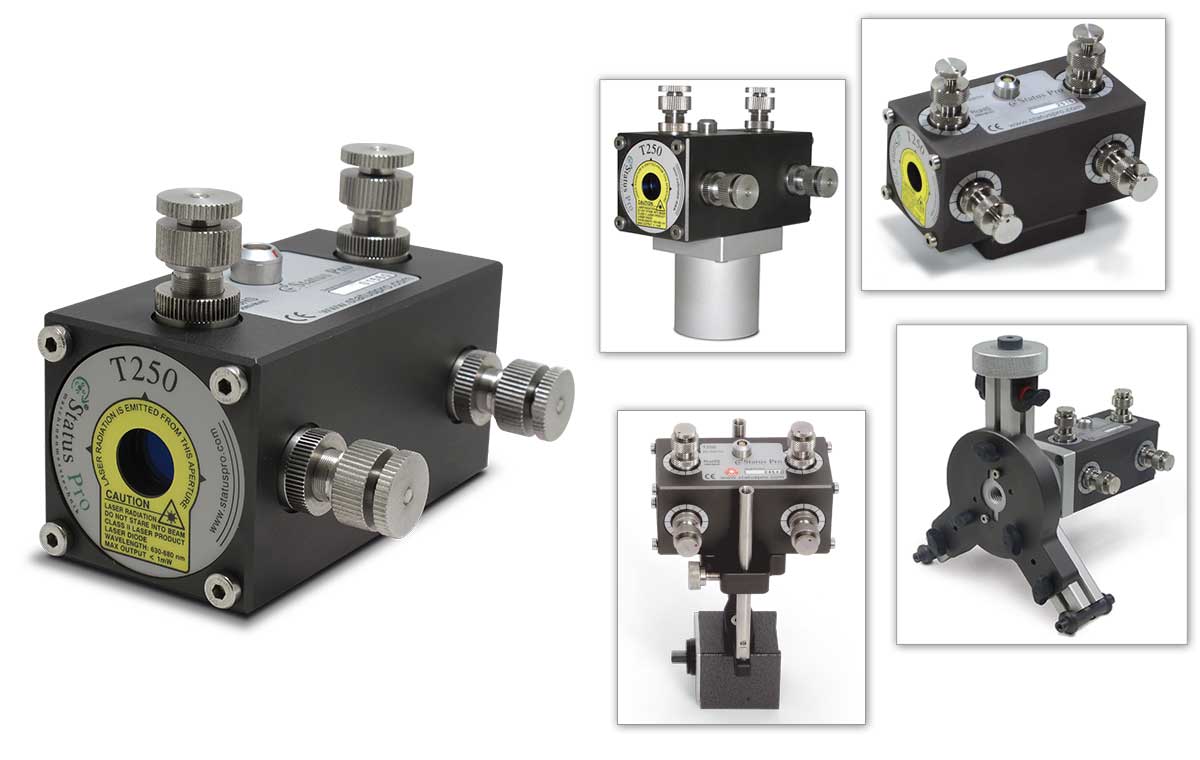

2 AXIS STRAIGHTNESS WITH PROLINE SOFTWARE
- Professional precision laser, for 2-axis straightness within everyone's reach!
- Precision measurement for 2-axis straightness measurement over long distances
- Precision laser source with micrometric adjustments
- Detector measurement resolution for straightness 0.1 µm with PROLINE software
- PSD straightness detector with 20 mm cell and built-in inclinometer
- Great ease of use
- Precision straightness 2 axes X-Y (altitude and yaw), resolution 0.1µm, precision ±1µm+0.5%
- PSD detector with rechargeable battery, mains charger included
- PROLINE V4 PC software (works via Bluetooth for PC)
- SP PROLINE ® 100 is a very practical and inexpensive straightness measuring unit for machine tools.
On-site demo possible throughout France.
