Waterproof measuring rulers

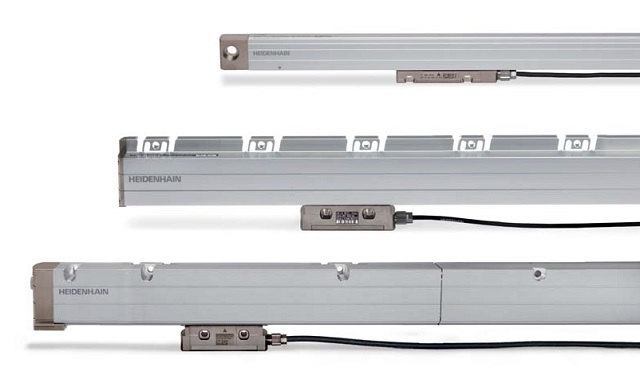

HEIDENHAIN housing linear encoders are available in incremental or absolute versions. Protected from dust, shavings and spray water and mainly intended for machine tool equipment.

• accuracy classes up to ± 2 µm

• measurement resolutions down to 0.005 µm

• measurement lengths up to 30 m (and more on special applications)

• simple and quick assembly

• large mounting tolerances

• withstands high acceleration

• protection against dirt

Protected linear encoders are available in

• large profile scale housings – for strong vibrations – up to 30 m in length

• small profile scale housings – for reduced mounting locations – up to 1240 mm in length, or 2040 mm

Fields of use and examples of applications

Linear measurement systems are intended for equipping:

• machine tools.

• conventional machine tools

• woodworking machinery

• axis measurement

• bots

• presses and benders

• automation and production equipment • etc...
