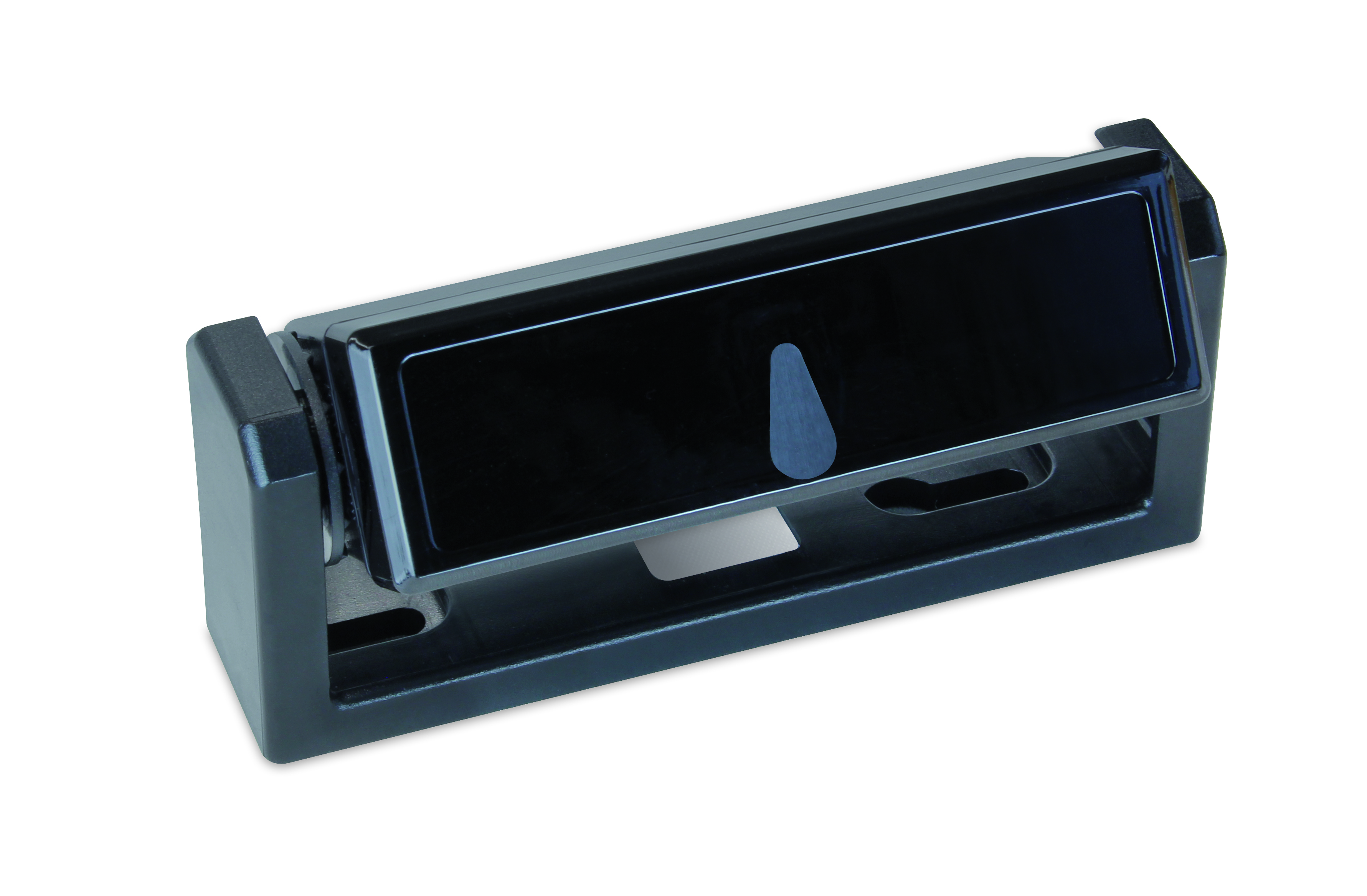

Bircher - SpotScan - Active infrared presence detectors

Resistant, flexible, discreet:

• Mounting height for background analysis mode 3.2 m (analyze background)
• Mounting height for background suppression mode 4.5 m (ignore background)
• Discreet, it can be mounted almost anywhere thanks to its compact shape
• Easily and individually adjustable with DIP switches and detection distance adjustment
• Universal use for mobile or stationary operation
• A whole range of accessories for every environmental situation

Active infrared presence detector for automatic door systems

Optimal security

The SpotScan has many talents. In stationary operation, it secures pinching and crushing edges for automatic revolving and swinging doors. In mobile mode, it can be mounted as a driveway protection. For sliding doors and revolving sliding doors, the SpotScan monitors the main and secondary closing edges; it is possible to test it.

Universal mounting

Thanks to its compact design and the variety of accessories, the SpotScan adapts to every mounting situation. It is suitable for narrow spaces and passages; it detects the presence of people or objects on moving walkways and wheelchairs. The complete control of people and safety locks is also part of the range of use.

Easy installation and adjustment

Easily understandable and focused on the essentials: a concept that makes it easy to install the SpotScan. A single turn of a screw is enough to adjust the optical action range of the sensor.

Your advantages

Versatile adjustment by three switches

The SpotScan is as versatile as it is easy to adjust: three switches are enough to adjust the SpotScan to the situation. The three DIP switches, which are located on the front wall of the device, are used to configure the operating mode, the signal output and the transmission frequency. Depending on the mounting height, the switching point of the infrared indicator light can be adjusted higher or lower via the mechanical adjustment screw.
