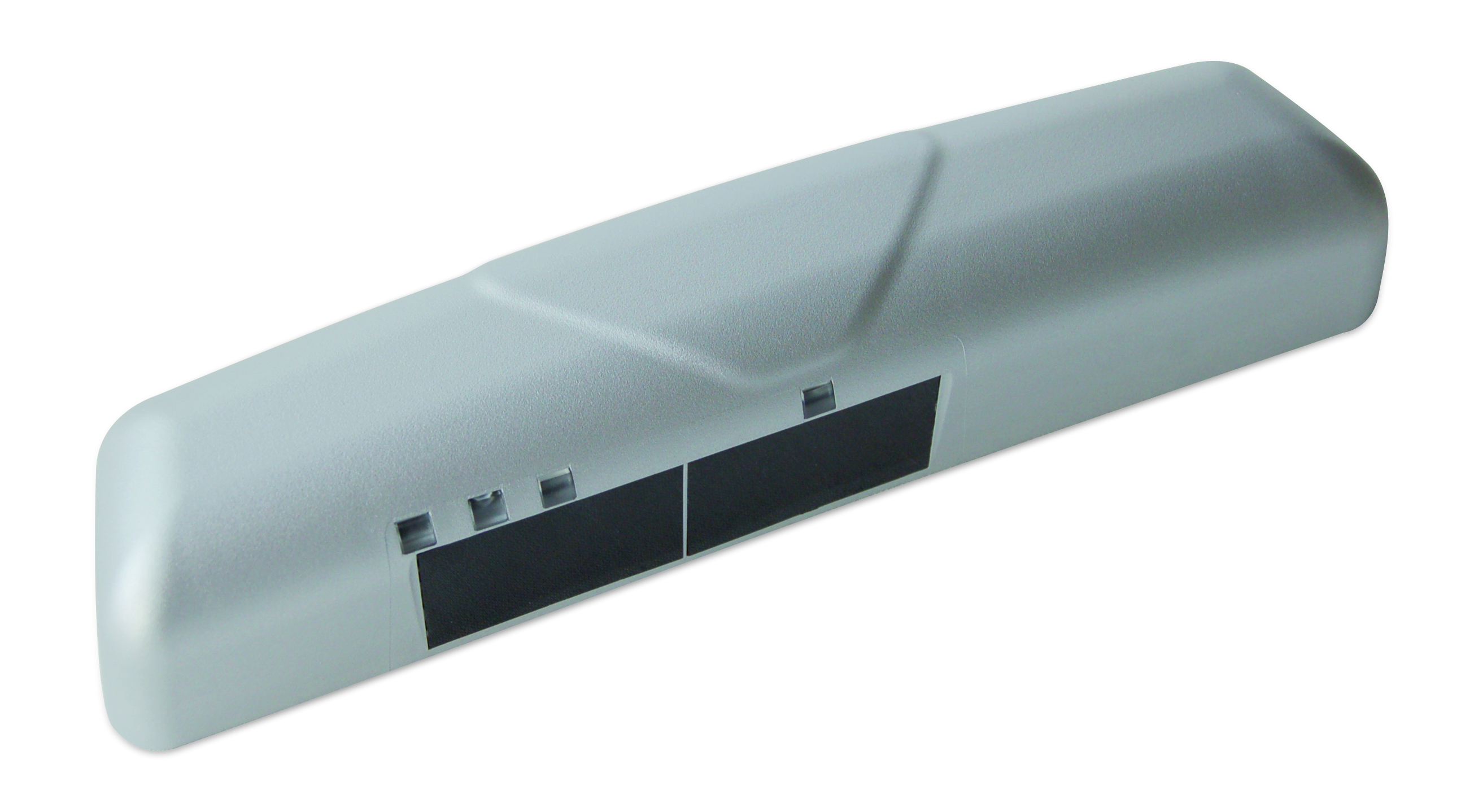

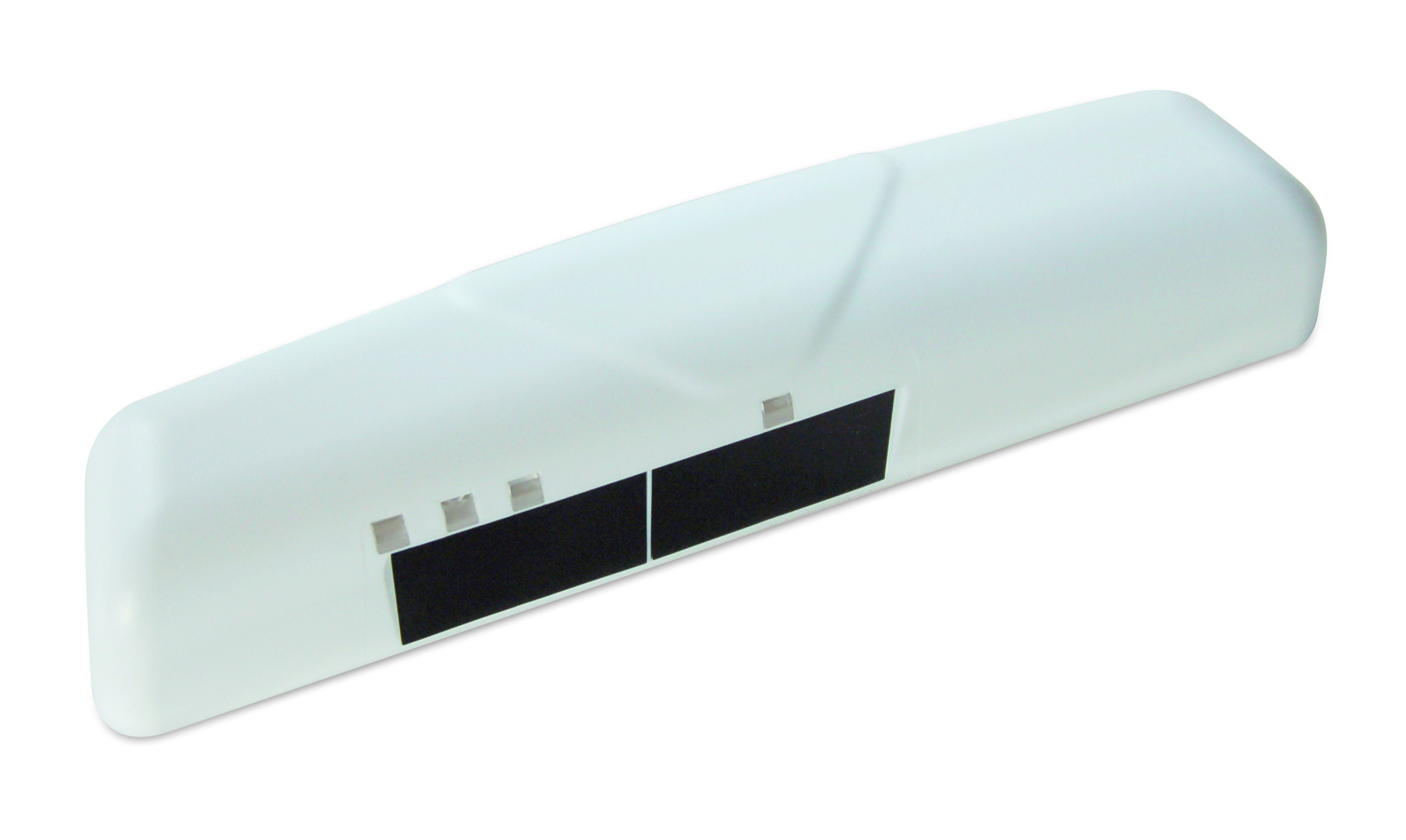

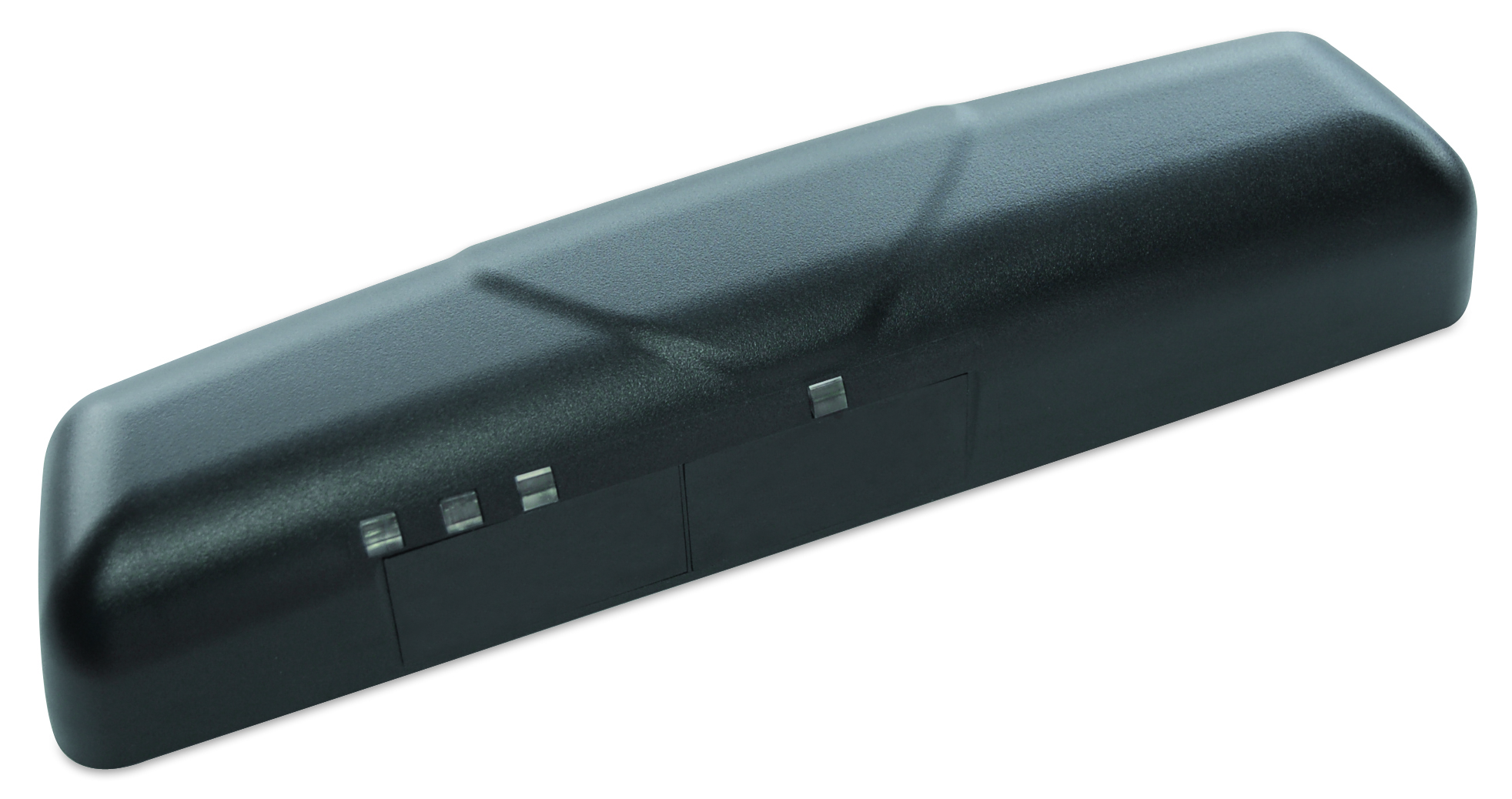

Bircher - PrimeTec A / PrimeScan A - Solutions for activating and securing doors

Convenient, flexible and discreet:

• User friendly: simple and quick installation
• Wide range of applications: can also be used on wide and high installations (4 m) very flexible field settings
• Quality design: modern and harmonious

The complete solution for activating and securing sliding doors, in accordance with EN 16005 and DIN 18650

PrimeTec A watches over protection and openness

The already proven radar technology is used for opening the automatic doors. The active infrared curtain (AIR), which acts as personal protection, is self-monitoring (according to EN 16005 / DIN 18650) and is tested before each closing of the door leaf. Different functions can also be adjusted according to the situation: the geometry of the field of the active infrared curtain and the radar, or the suppression of cross traffic in order to avoid unwanted openings.

PrimeScan A monitors the auxiliary closing edge of the door leaves

The active infrared curtain ensures optimal protection of the lateral environment of the door. It protects people in the danger zone from the opening of the door leaf.

Your advantages :

Quick and easy commissioning

• Automatic detection of test input
• Simple and clear operation via buttons or configuration using the two-way remote control
• Precise positioning of the AIR curtain thanks to the display of the inclination on an easily readable scale

Field properties that increase security

• Also suitable for wide and high installations
• Mounting height up to 4 m for an additional AIR (Active Infra Red) field width
• Meets at least EN 16005 / DIN 18650 up to 3.5 m
• Possibilities to adjust the field geometry electronically (via remote control or detector buttons)
