Bircher - RFGate 2 - Signal transmission systems

Simple, safe, low maintenance

• Quick and easy installation and short commissioning

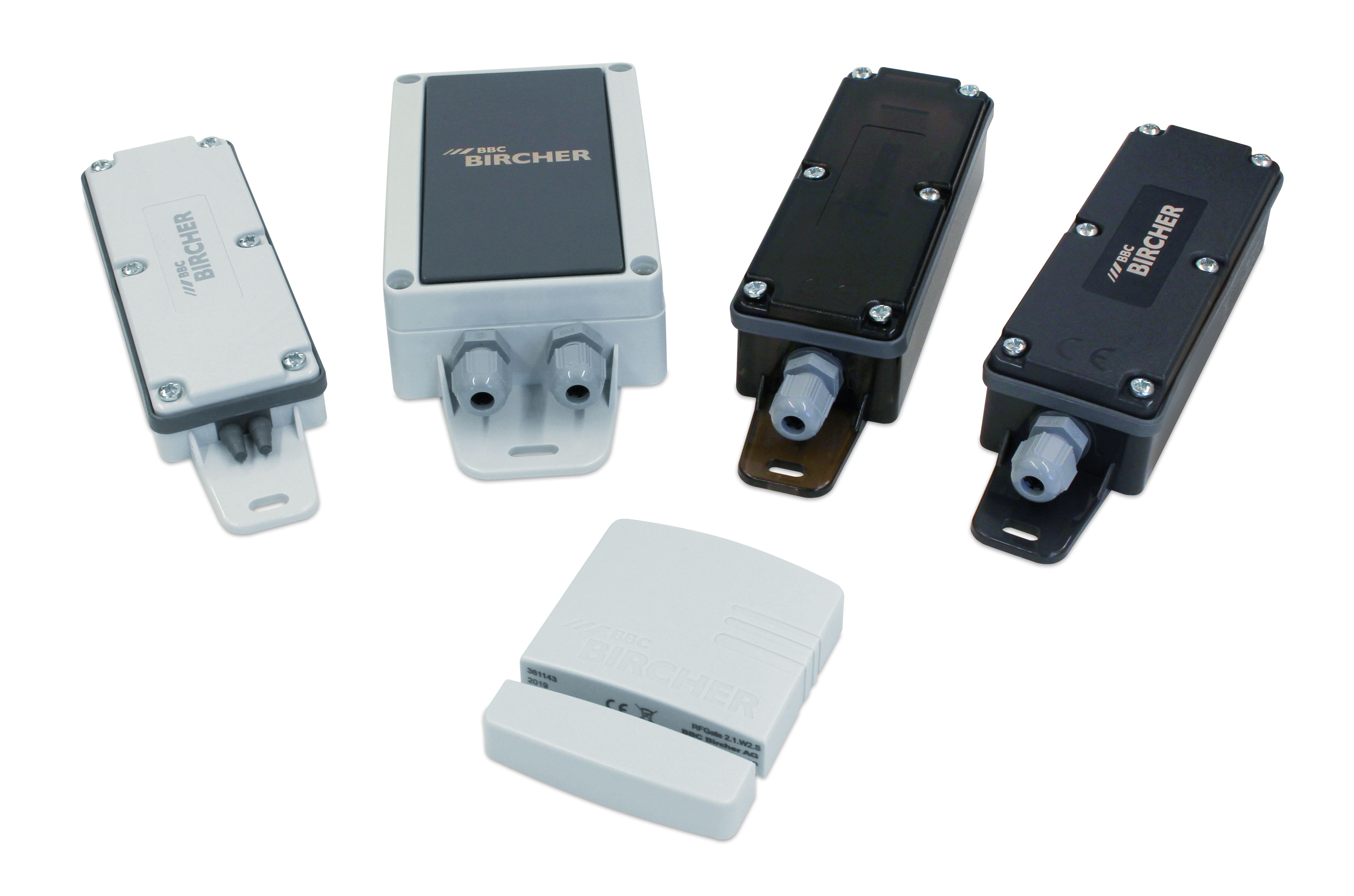

• Many possible uses
• Safety without compromise in accordance with PLC, category 2, according to EN ISO 13849-1
• Extended service life and reduced operating costs thanks to wear-free signal transmission

Radio signal transmission system for sensitive safety profiles on automatic roll-up doors, sectional and concertina doors as well as on sliding and telescopic gates

Security available immediately

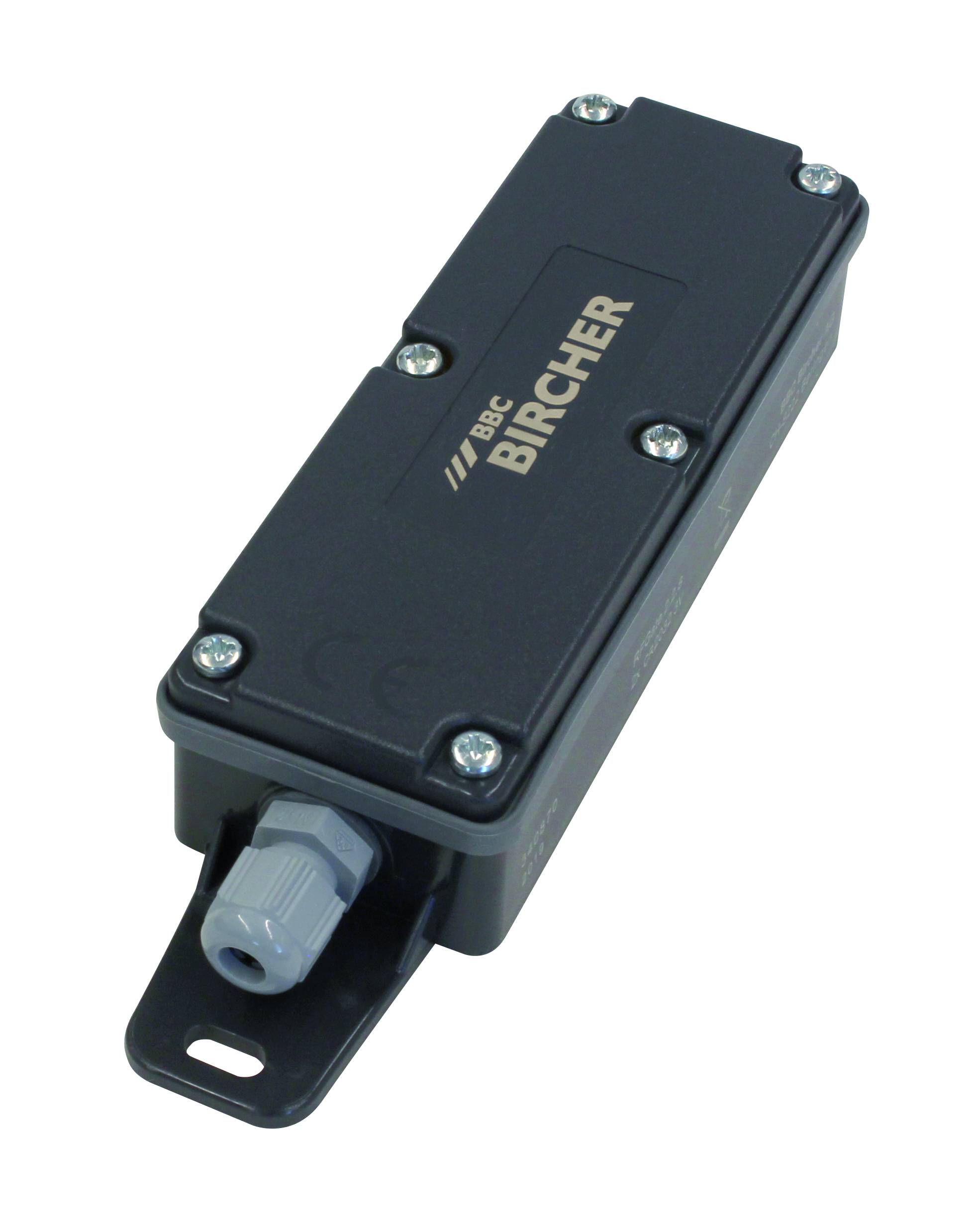

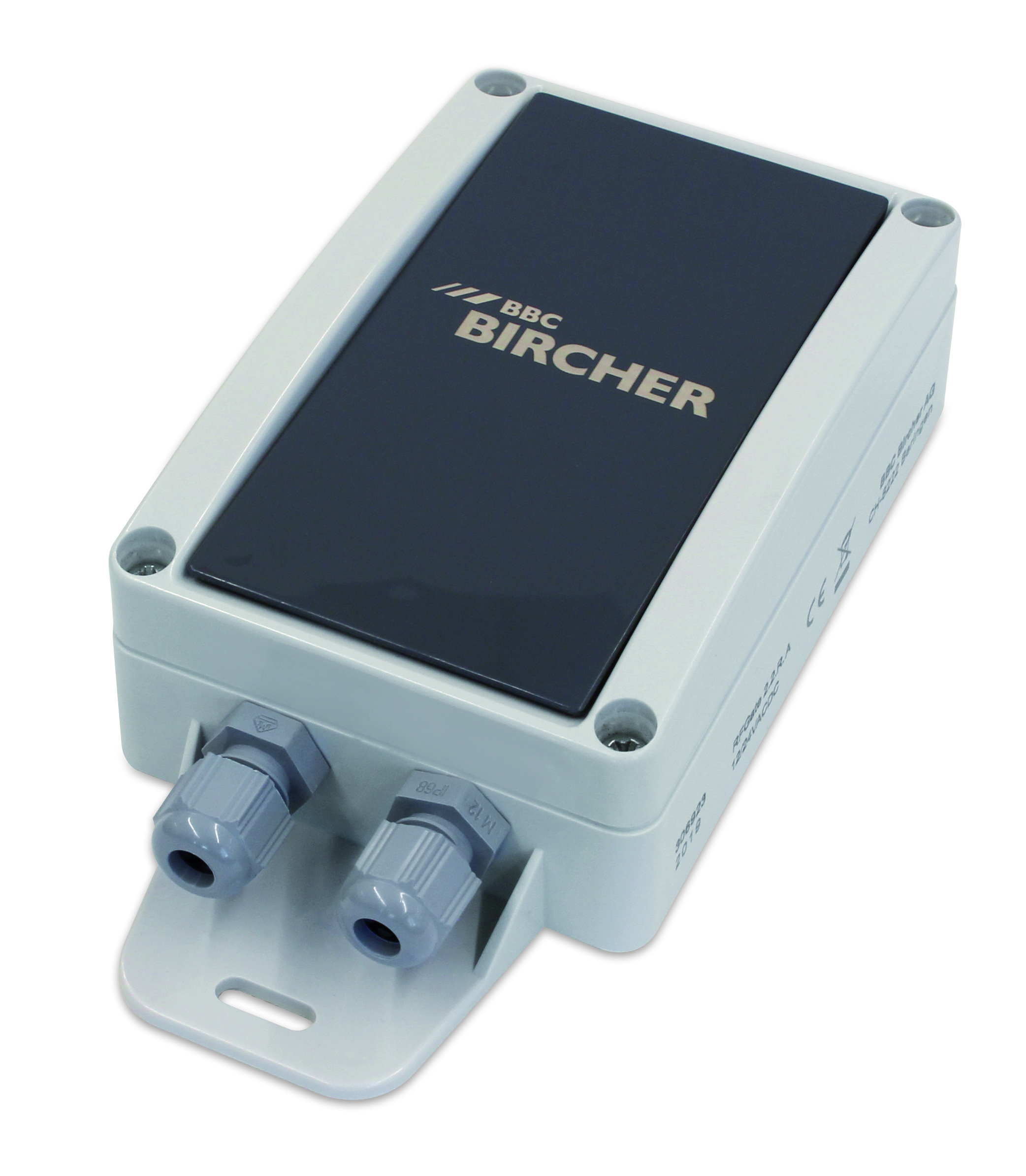

The RFGate 2 is a safety system that transmits the status of safety sensitive profiles mounted on the moving part of the door by radio in a reliable and wear-free manner. Quick install, program, activate, and you're done!

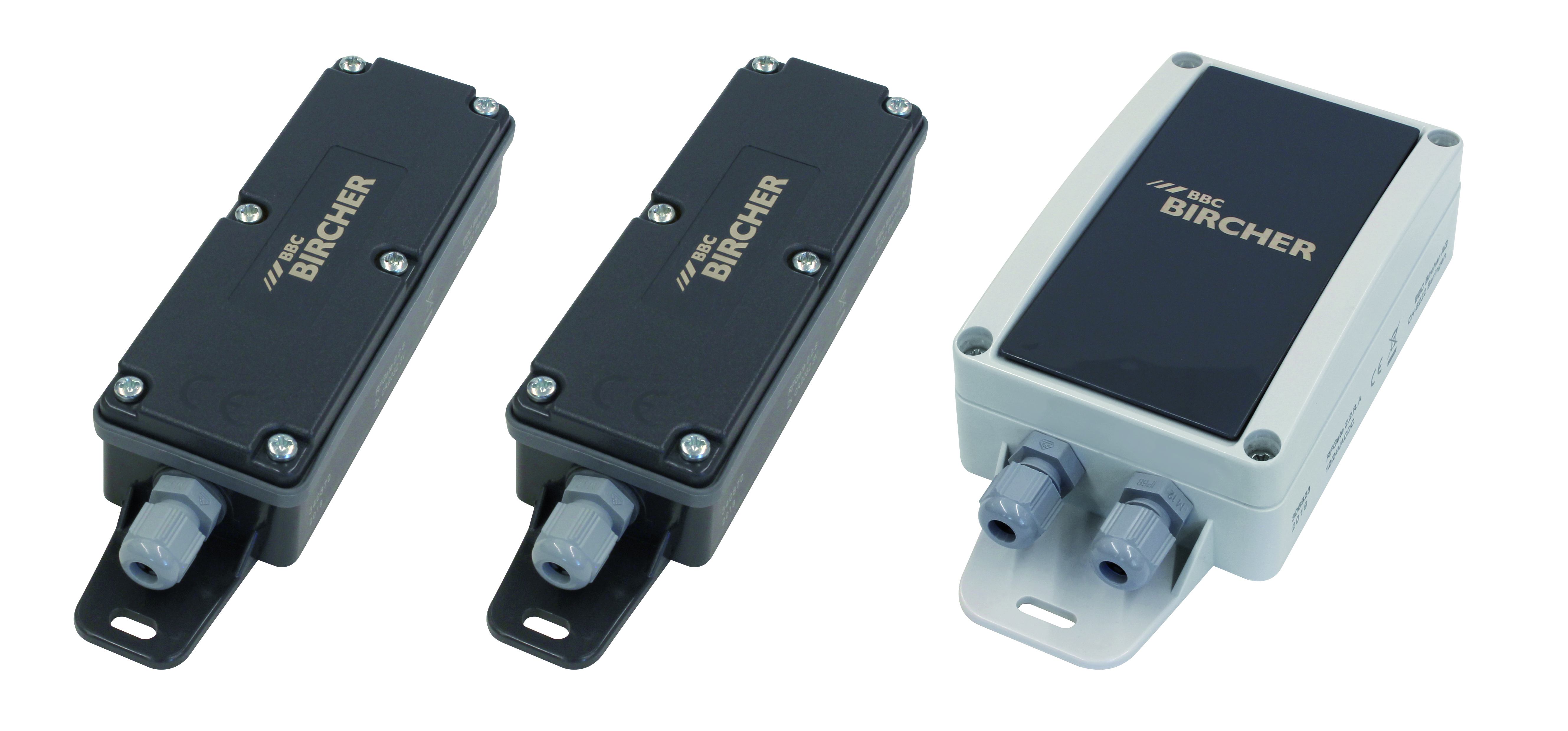

One and two channel

Depending on the application and your needs, choose the one-channel (RFGate 2.1) or two-channel (RFGate 2.2) variant.

Also with service door switch

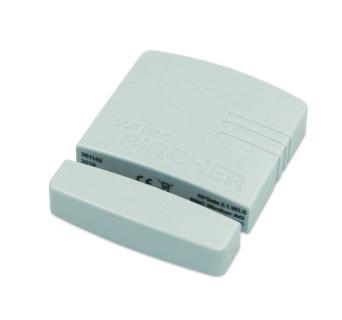

With the compact service door transmitter RFGate 2.1.W2.S you have the right complete solution for the evaluation of service doors and sensitive profiles.

Your advantages

• Up to seven transmitters per channel can be evaluated in parallel
• Extended battery life (>2 years)
• Compatible with 8.2 kOhm safety sensitive profiles (factory setting) or other NC or NO detectors
• Possibility of frequency switching in case of environments with very strong interference RFGate 2.2:
• Two outputs to distinguish OPEN and CLOSED direction
• An extra flat (slim) version transmitter is now available, perfect for its small size (RFGate 2.2.SF)
