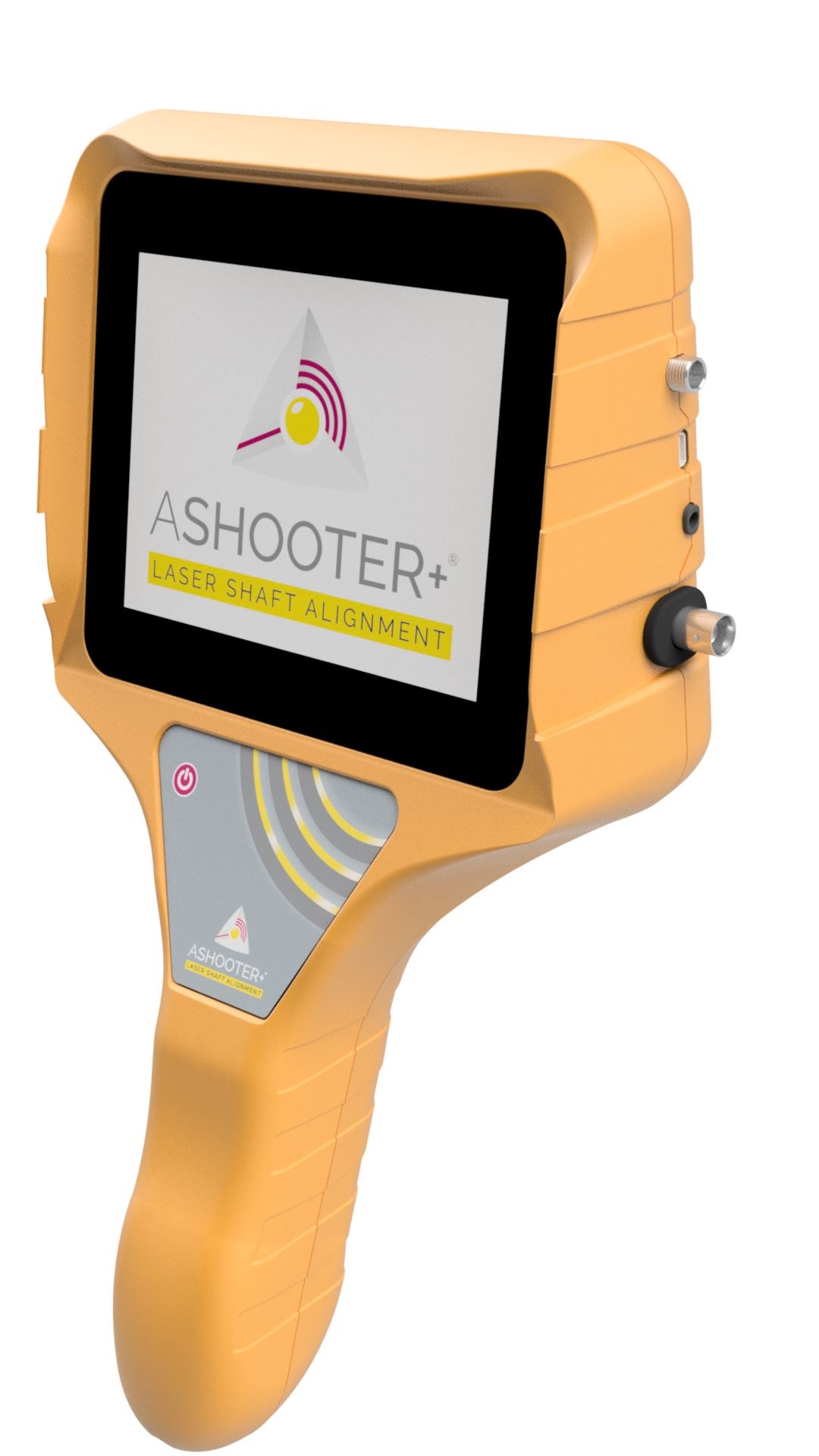

ASHOOTER®+ Laser Shaft Alignment

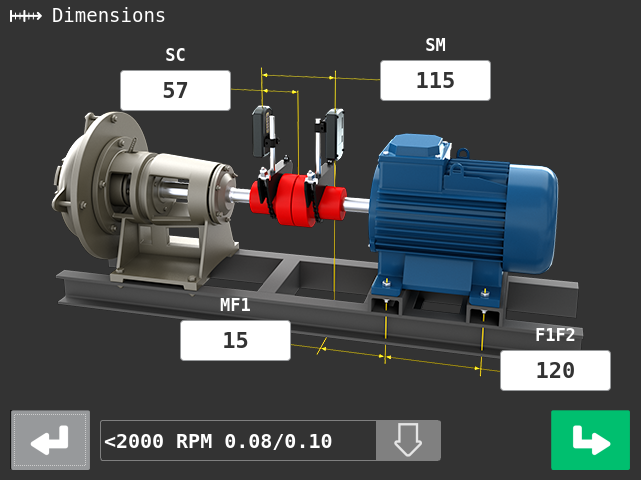

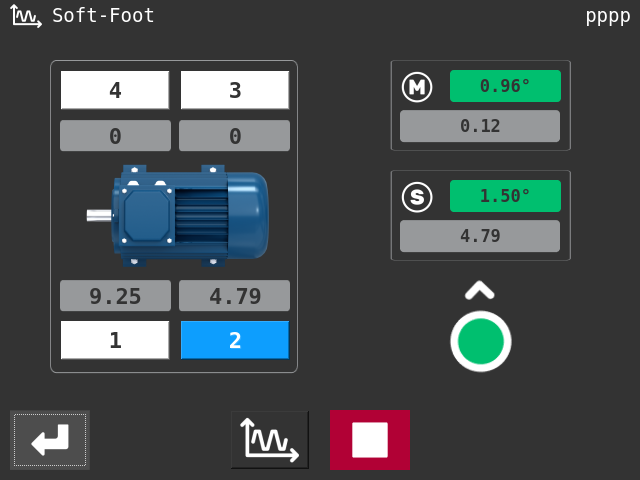

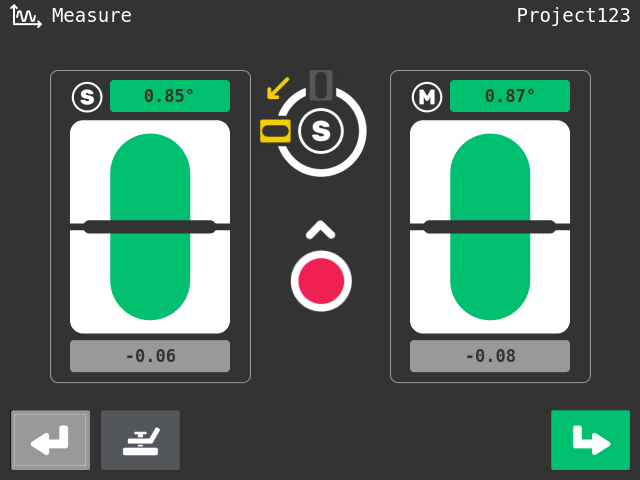

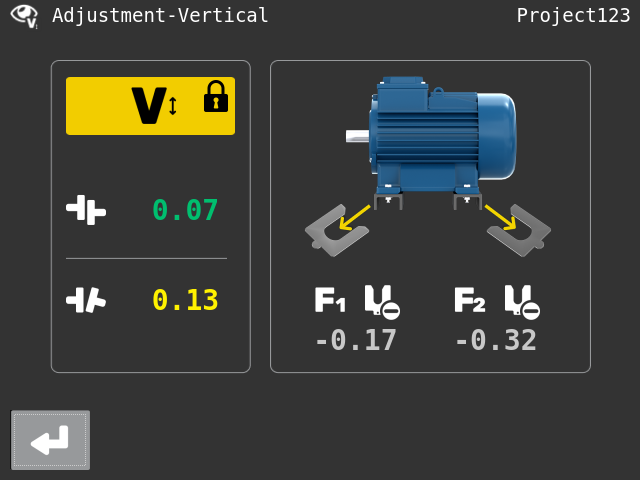

General data - Checking the wobbly foot - Measurement of the initial state of misalignment of the machine at the coupling - Adjustment of the Vertical plane: Correction shims (+ or -) - Adjustment of the Horizontal plane: Corrections in "real time" to the machine feet - Remeasurement of the final aligned state - BEFORE/AFTER measurement report with photo of the machine - Large 5.7" color touch screen for didactic, simple and effective use - Wireless laser transmitters and receivers with electronic inclinometers (0.1°) - 30mm CCD cells with high measurement resolution (001mm or 1µm) - Integrated tolerance table according to the RPM - Suitable for machines with motor on the right or left (FLIP function) - Wobbly Foot and Thermal Growth functions included - LIVE mode for horizontal corrections of the machine - Automatic calculation of SHIMS for vertical corrections of the machine - "Initial/final" measurement report with machine photo for PC (USB output) - FLIR LEPTON 160×120 px on-board thermal infrared camera - 5MP on-board digital camera - OPTION: Vibration analyzer with program and ICP/cable sensor (VSHOOTER+®)
