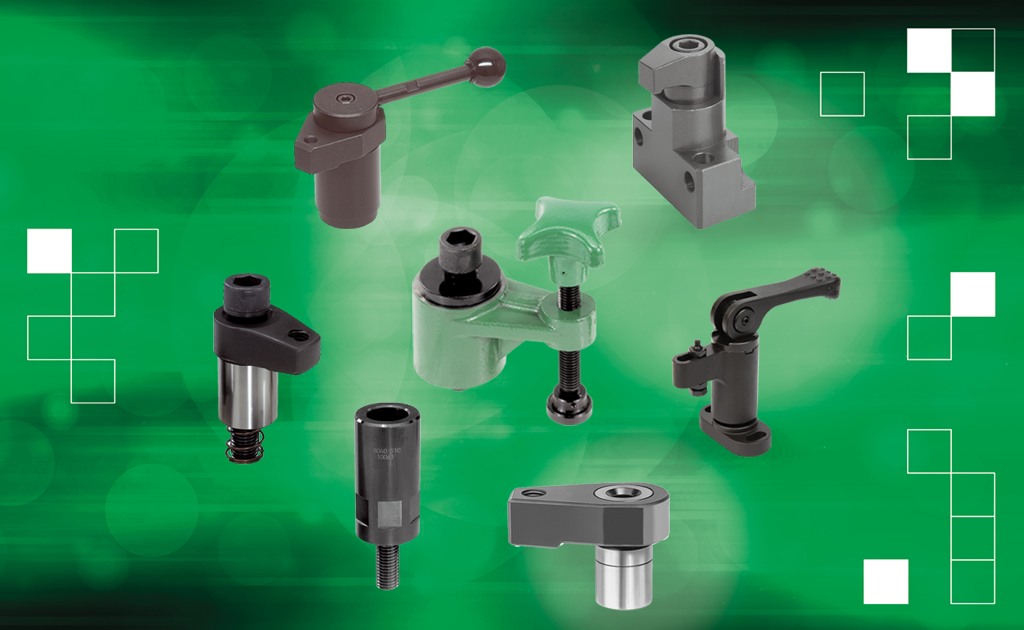

Swivel clamp assembly, adjustable clamping system
norelem offers you its range of swivel clamps and clamping hooks for multiple applications in different industries and sectors to be able to place and remove your workpieces as you wish.
The clamping elements enable quick clamping and comfortable changes of workpieces.
Clamping elements for multiple uses
Clamping elements are designed for tool machining machines and are used to hold the workpiece in position. Whether machining, drilling or mounting parts of different shapes, clamping elements provide fast and regular clamping for optimized production.
Swivel clamps: characteristics and uses
norelem swivel clamps are used to immobilize workpieces during their work cycle. The workpieces are held in such a way that they cannot move, fall or separate, thus facilitating their machining. The different models can be swiveled to the right, left or backwards for simplified manual clamping. Different clamping heights allow all kinds of workpieces to be machined.
Mechanical clamping systems and swivel clamps consist of a body with fixing holes, an adjustable support and the clamping lever. All our models are available in different sizes and materials.
Find the swivel clamp that meets your needs among:
- Mini Swivel Clamp Set with Quick Release Lever
- Mini Swivel Clamp Set with Plastic Handle
- Cast iron and steel swivel clamp assembly
- Three-level clamping flange

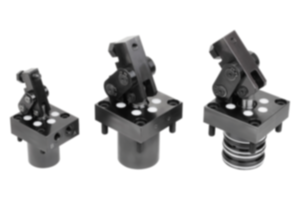

norelem offers you compact clamping blocks to clamp your workpieces in a single movement. The clamp, made of highly resistant treated alloy steel, retracts completely under the body of the block, allowing the loading area to be quickly cleared. Raising blocks are used to raise your compact clamping blocks.
For the finishing of your machining, norelem offers clamping flange extensions . This flange extension is positioned and fixed on the machine table and the clamping flange is fixed on it. The clamping screw, once actuated, will adjust the clamping arm in height, without the use of additional shims, to clamp the part.
Clamping hooks and cylinders: characteristics and uses
Clamping cylinders and clamping hooks are compact elements for any rapid clamping of workpieces and fixtures. Once the clamping arm is lowered, the rotation and tightening movement of the screw or indexing handle will clamp the workpiece.

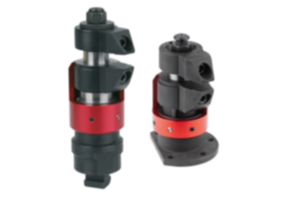

The pneumatic swing clamp cylinder is used for applications that require low clamping force and is ideal for clamping workpieces from above. The swing, to the right or left, allows easy insertion and removal of the workpiece.
Find the clamping cylinder that meets your expectations:

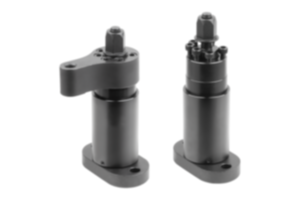

- Long nose clamping cylinder
- Swivel clamping cylinder
- Base clamping cylinder : screws into tapped holes and does not require countersinking
- Guide sleeve for clamping cylinder : extension for cylinders

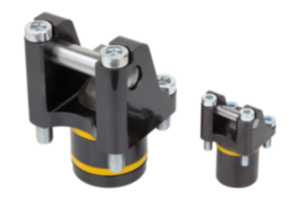

Clamping hooks are ideal for clamping where the workpieces must be inserted from above. The hook can pivot and facilitate the insertion and removal of the workpiece. The height is easily adjusted using a screwdriver. Among the clamping hooks you will find:

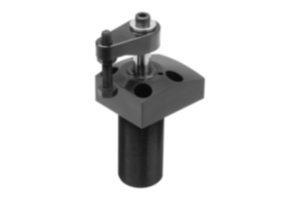

- Quick-release base and lever clamping hooks
- Clamping hook with base with extended clamping flange
- Angular socket clamping hook with extended clamping flange
norelem also offers you its range of clamping hooks with base and anti-friction bearing . Thanks to the latter, the clamping force can be increased by 75%.
