Housings for control and signaling devices Mounting opening Ø 22.3 mm

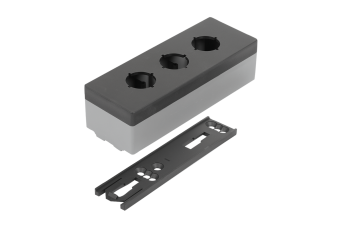

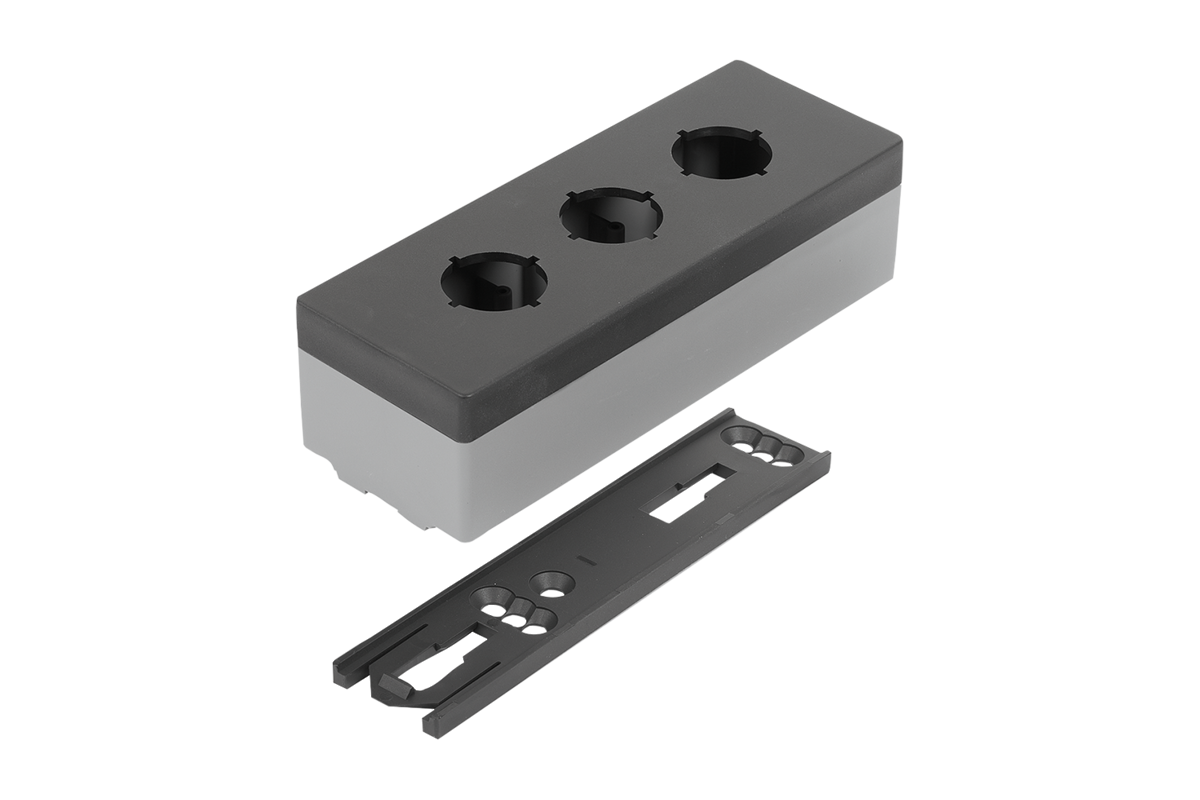

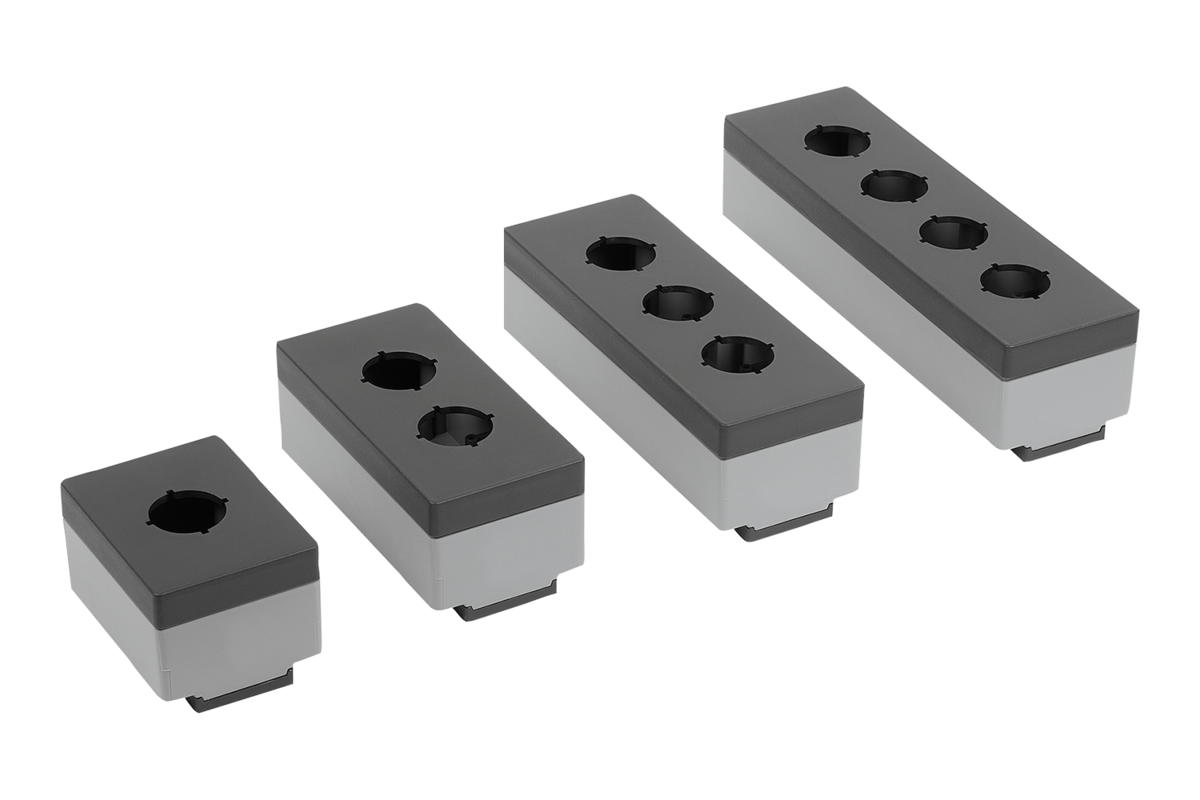

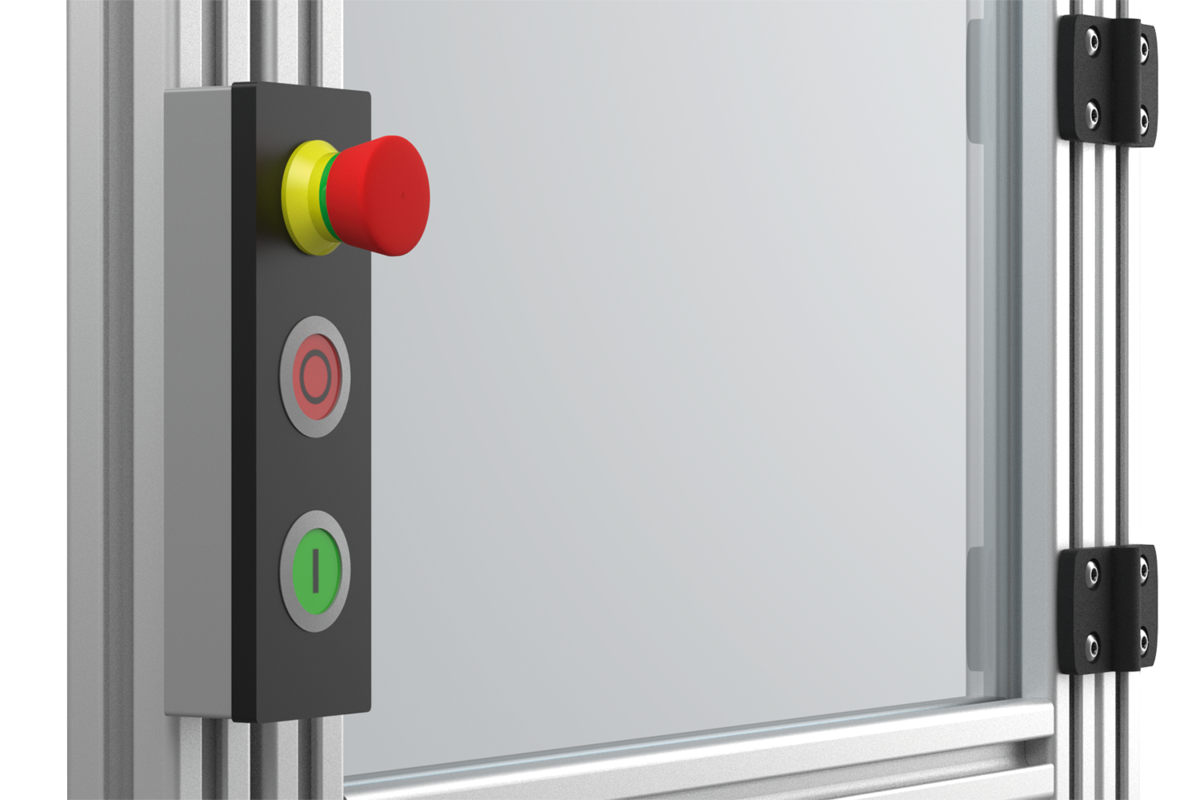

Empty enclosure for up to 4 control elements. This robust PA6 plastic enclosure has a mounting diameter of 22.3 mm for accommodating control and signaling devices. It is suitable as a mounting enclosure for applications in all industrial sectors. Its interior space is large enough to allow the installation of the necessary components. Simply insert this enclosure into the supplied bracket and secure it by snapping it into place.
Form A: Without pre-cut cable entry (for your own fittings or radio connection).
Form B: One pre-cut M16 knockout cable entry on the front panel. Certifications/standards met: CE, UL. The IP rating depends on the components used.
Matter :
PA6 plastic.
Finishing :
Dark gray lower part.
Black upper part.
Black support.
Temperature range:
Storage temperature: -40°C to +70°C.
Serving temperature: -40°C to +60°C.
Assembly :

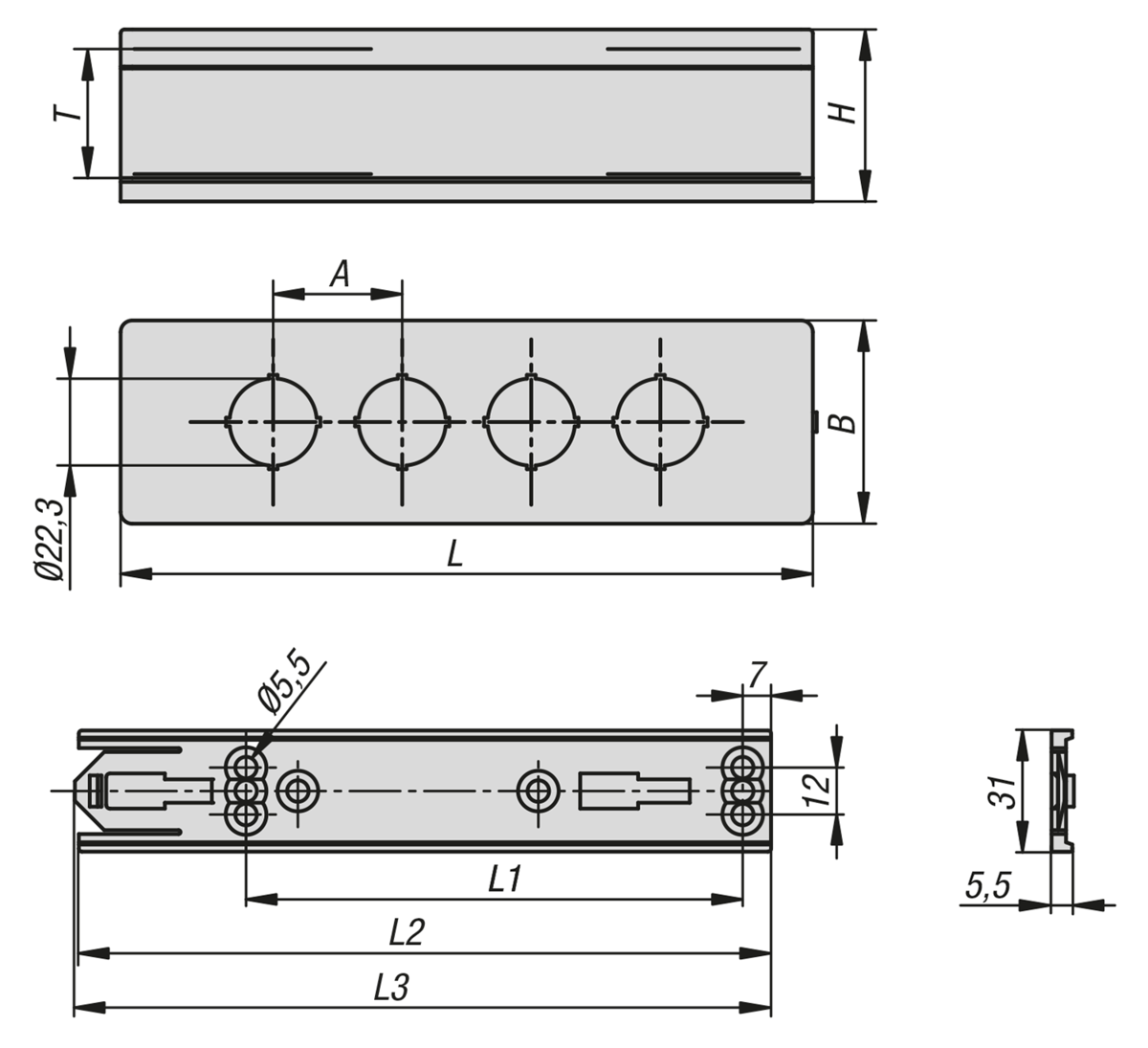

The bracket is screwed to a surface or profile using FHC screws. The housing is then placed on the bracket and snapped into place.

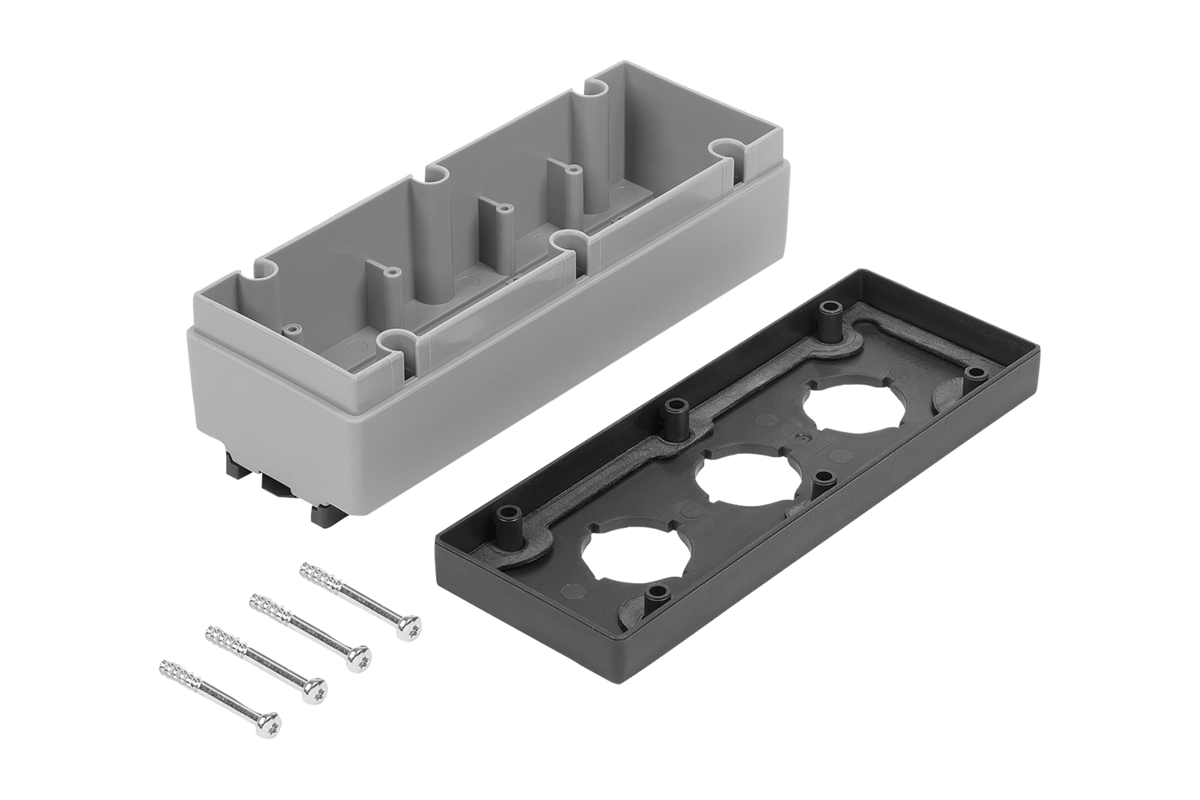

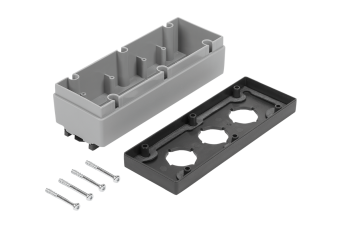

Scope of delivery:
1x case.
1x wall bracket.
