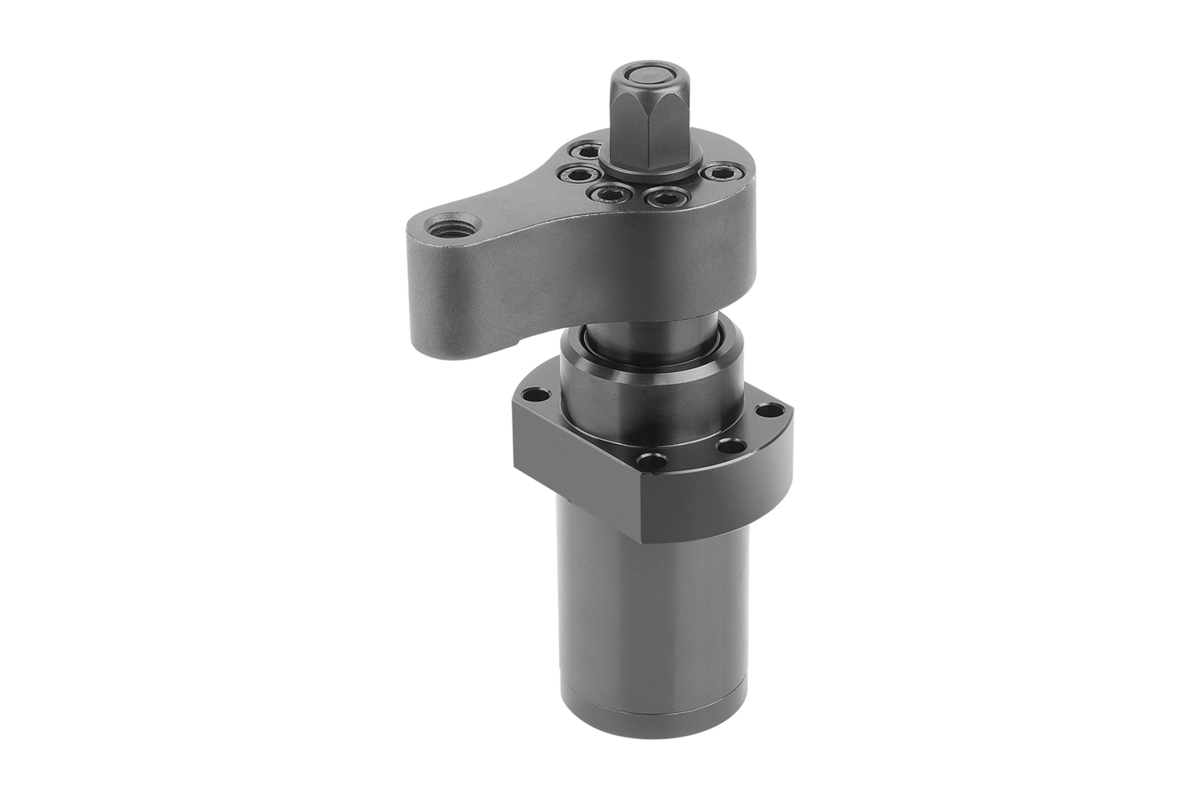

Heavy duty swivel clamping assemblies with base and extended clamping stroke that can be automated
Description
Heavy-duty swing clamping assemblies with extended clamping stroke are particularly suitable for automated clamping operations.
At the start of the clamping operation, the clamping arm performs a 90° downward pivot movement thanks to the integrated control curve. As a result of this movement, the clamping stroke is linear downward.
Technical details
Matter
Processing steel.
Finishing
Burnished base body.
Treated and burnished stem.
Treated and burnished clamping arm.
Treated and burnished stem.
Treated and burnished clamping arm.
Instructions for use
Operation using an impact wrench with adjustable torque or manually using a tightening wrench.
Benefits
Automatable
High clamping forces
Quick tightening
High rigidity
High clamping forces
Quick tightening
High rigidity

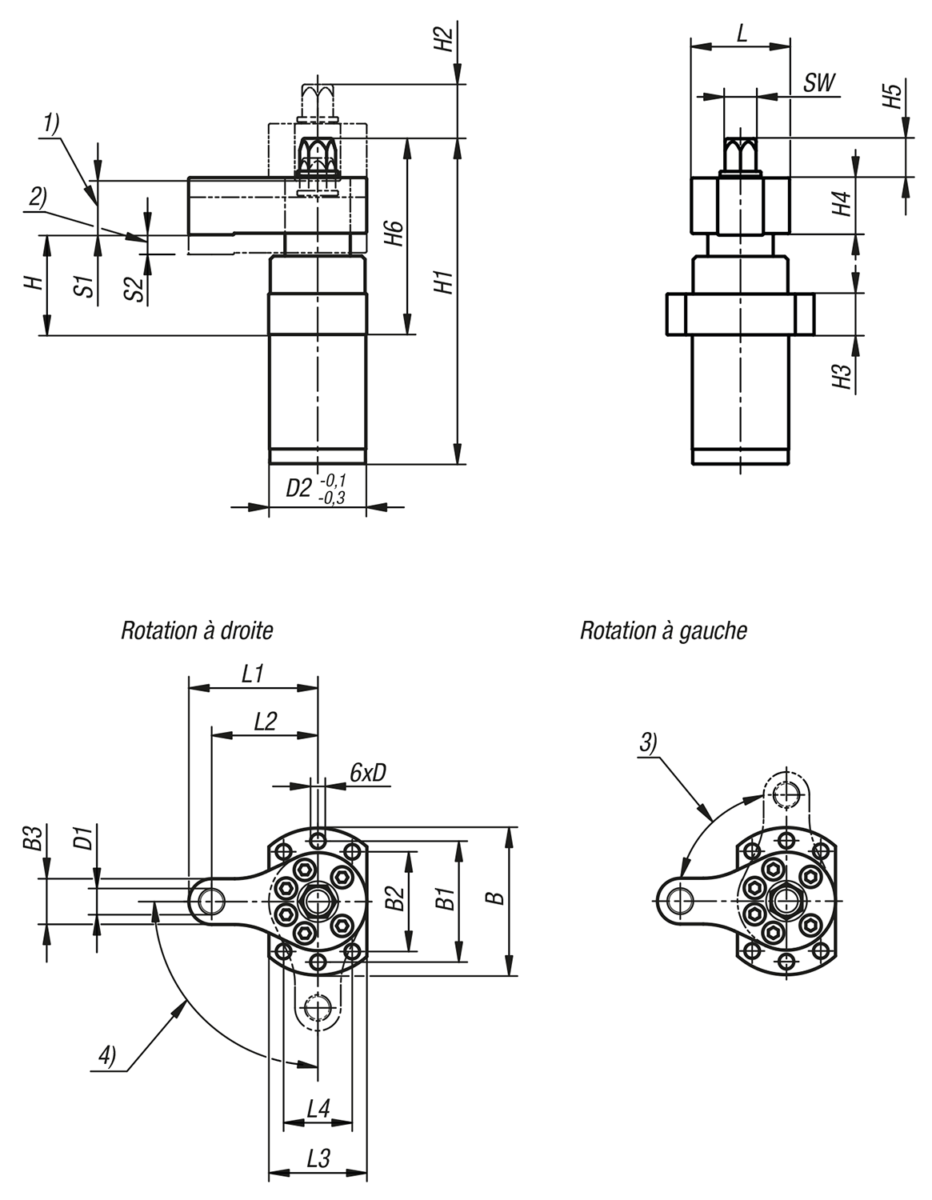

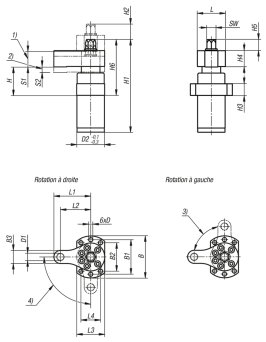

Drawing indication
1) Pivot stroke
2) Clamping stroke
3) Left pivot
4) Right swivel
2) Clamping stroke
3) Left pivot
4) Right swivel
