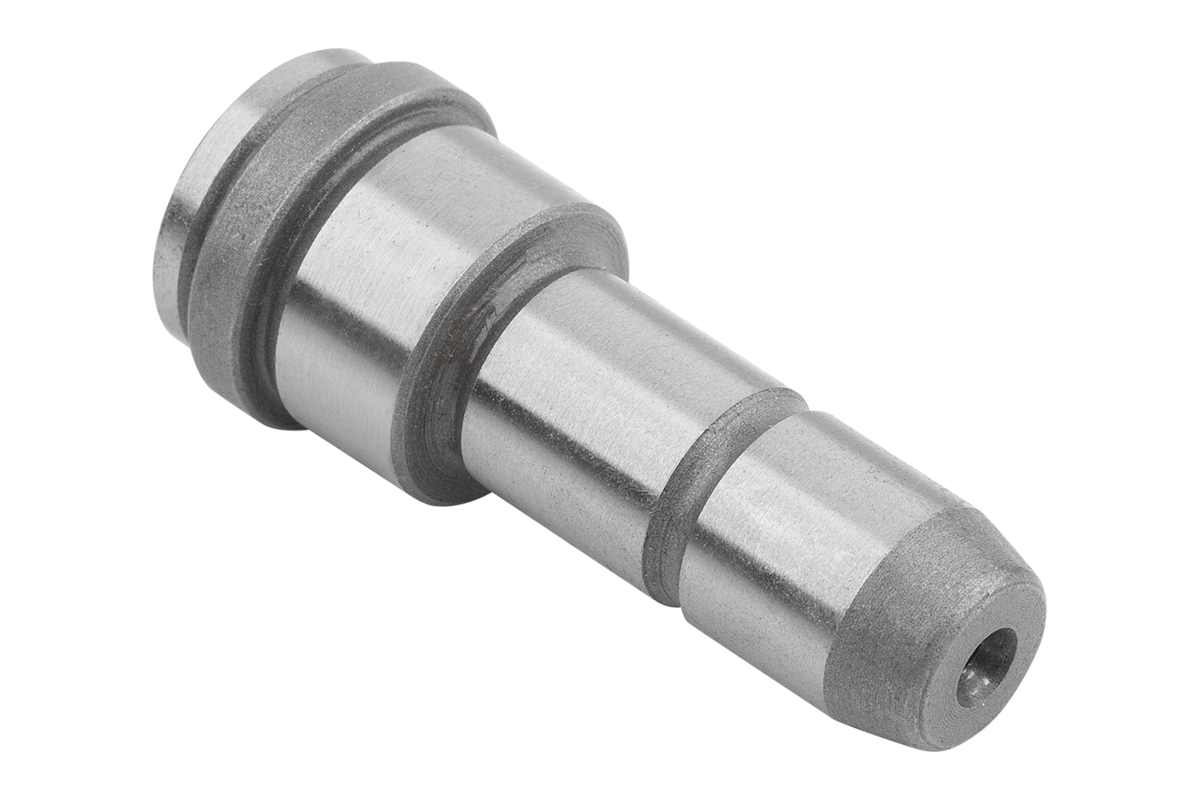

Steel guide columns with centering collar
Description
Steel guide columns with centering collar and two centering diameters offer a solution for precise guiding operations in demanding applications. These guide columns offer maximum precision, stability and flexibility in the manufacturing process.
With their integrated centering collar and two centering diameters, these guide columns enable optimum alignment and positioning of tools and molds. This offers a high degree of adaptability and opens up new possibilities for precise machining operations.
The 3+1 principle ensures correct assembly of the two mold halves. 3 guide elements of larger diameter and 1 guide element of smaller diameter are installed.
Technical details
Matter
Guide column made of 1.7139 carburized steel.
Finishing
cemented.
